Installing Selector Switches and Final Assembly
1. Select a mounting location for the selector switches. Switches must be mounted within
one foot (300 mm) of the display.
2. Cut holes in your enclosure or console for the selector switches, referring to Figure 2-28
for cutout dimensions. Dimensions are the same for all switches.
3. Install the selector switches.
4. Wire each selector switch to the appropriate terminal block on the WPC 1000 Display
board, referring to Table 2-14 and Figure 4 at the back of the manual for wiring
connections
DO NOT USE CONTINUOUS MODE ON PRESS WITHOUT PROPER GUARDING
Disconnect the “Continuous” position on the stroke selector switch and cover the “CONT” label on
your control if your press is not guarded properly for use in Continuous mode or you do not run
your press in Continuous mode.
Failure to comply with these instructions will result in death or serious injury.
Mount selector switches within one foot (300 mm) of the Display board.

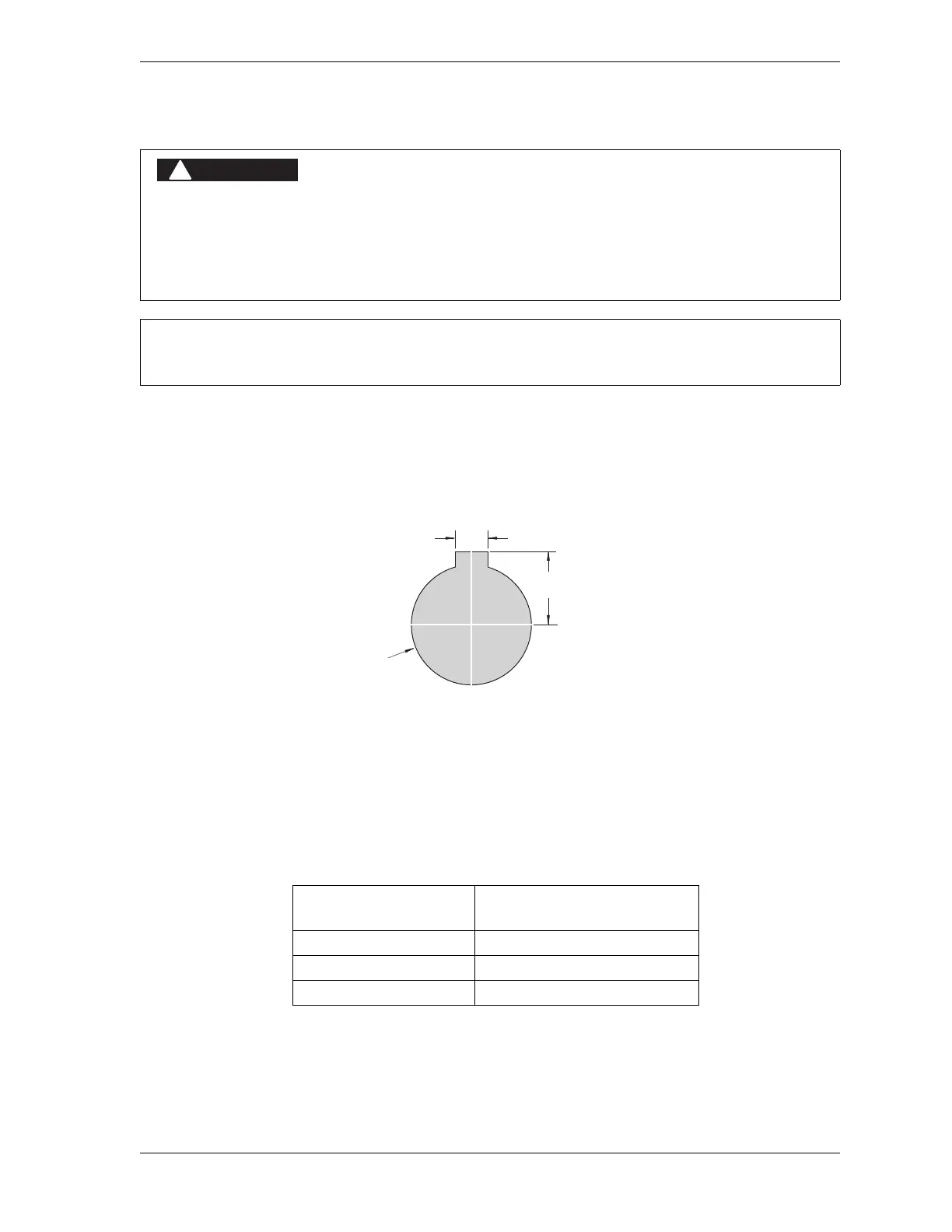

Figure 2-28. Selector Switch: Cutout Dimensions
Table 2-14. Selector Switch Wiring Connections
Selector Switch Terminal Block on
WPC 1000 Display Board
Stroke Select TB701
Mode Select TB702
Micro Inch TB705
DANGER
!
NOTICE
0.172
(43.7)
0.672
(17.1)
1.218 dia.
(30.9)
Dimensions:
inches (mm)
