2-50 Installation
Connecting the Panel-mount Display to the WPC 1000 Control Board
Connect the display cable from J706 on the Display board to J104 on the Control board,
referring to Installing the Display Cable, page 2-55 for instructions.

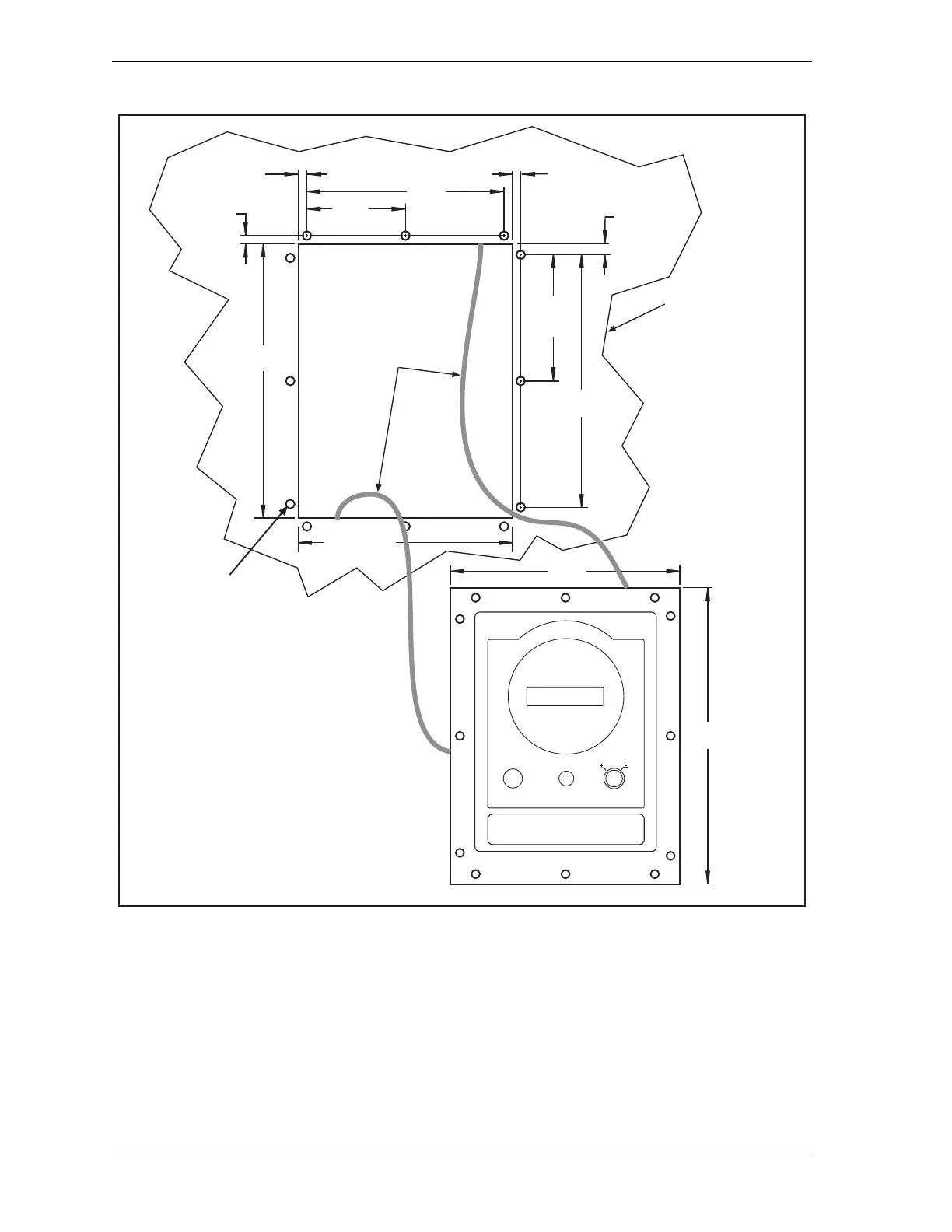

Figure 2-27. WPC 1000 Panel Mount Display: Mounting and Cutout Dimensions
YOUR
PANEL
tapped or
clearance
holes for
No. 10
hardware
12 places
allow
9 in. (230 mm)
service
loop
allow at least
4 in. (100 mm)
clearance
behind panel
Dimensions:
inches (mm)
0.5 (12.7)
2 places
6.50 (165.1)
10.00
(254.0)
9.00
(228.6)
7.50
(190.5)
6.00
(152.4)
0.25 (6.4)
2 places
0.25 (6.4)
2 places
4.00
(101.6)
4 places
8.00
(203.2)
0.25 (6.4)
2 places
3.00
(76.2)
4 places
WPC SETTINGSRESET/SELECT MUTE
