WPC 1000 User Manual 1125100
Installation 2-39
Wiring Zero Cam Output to AutoSet
WPC 1000 provides a zero cam output that automatically turns on at 270° and turns off at 30°
on every stroke. You can wire this output to AutoSet 1500 and 1504 load analyzers, as shown
in Table 2-10, below, and Figure 2 at the end of the manual.
Wiring Foot Switch
Foot Switch, an option available from Wintriss, enables the operator to use both hands during
operation of the press as, for example, when manually feeding parts. If you choose to order a
foot switch, you must obtain optional Foot Switch firmware from Wintriss and install a
Shadow safety light curtain.

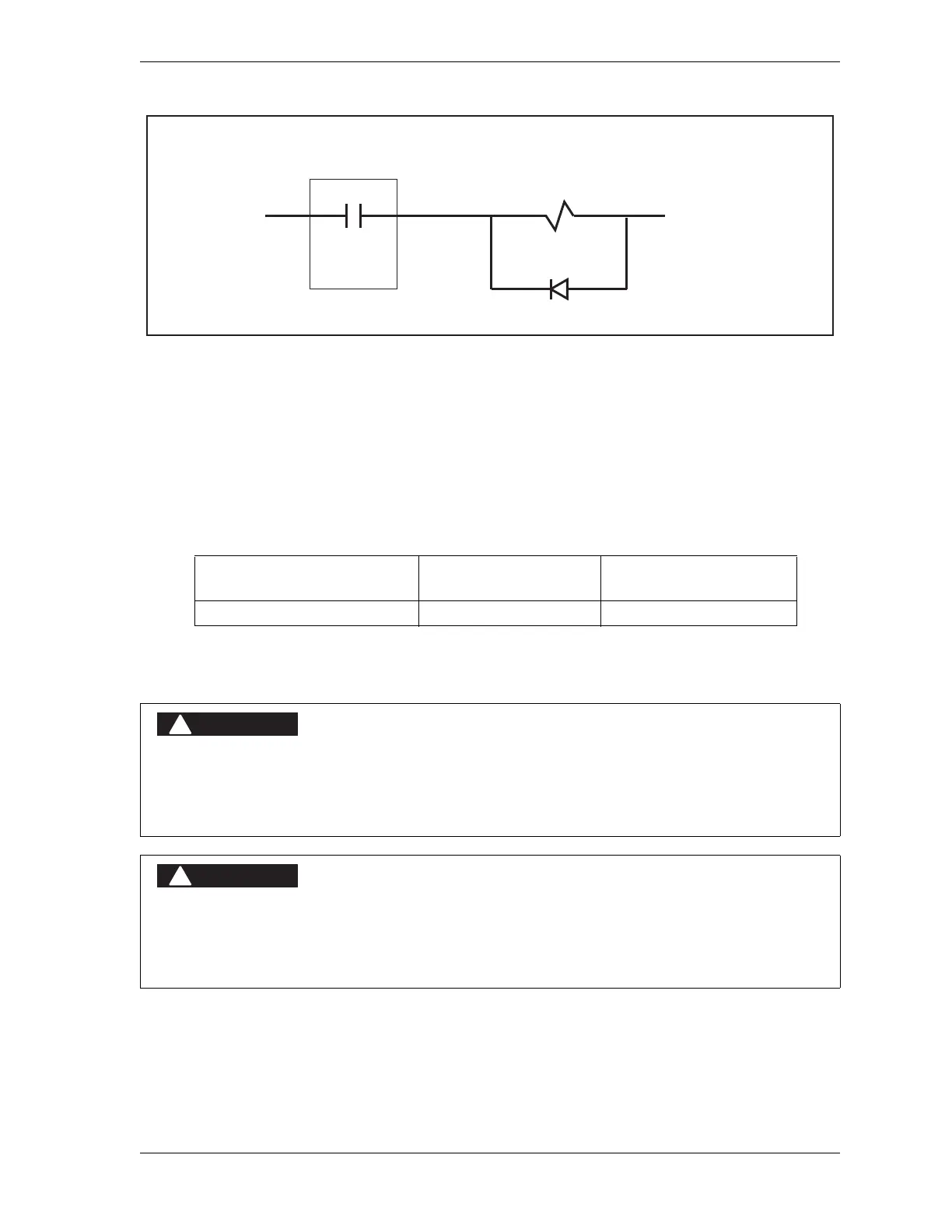

Figure 2-21. Installing a Diode across a DC Load
Table 2-10. Zero Cam Output Wiring Connections
WPC 1000 Control Board
Pin # Signal
AutoSet 1500 (TB1)
Pin# Signal
AutoSet 1504 (TB101)
Pin # Signal
pin # 9 Zero Cam Output pin # 2 Zero Cam pin # 2 Zero Cam
UNGUARDED HAZARDS
When using a foot switch, ensure that light curtains and other safeguards are properly installed
and operating to protect operators.
Failure to comply with these instructions will result in death or serious injury.
IMPROPER FOOT SWITCH
Ensure that any foot control switch complies with OSHA 1910.217 (b) (7) (x), including protection
from accidental actuation by falling or moving objects or unintentional stepping on the control.
Failure to comply with these instructions will result in death or serious injury.
+ DC IN
DC RETURN
Relay
C N/O
IN4001 or equivalent
To Next Page
