2-44 Installation
4. Using the conduit hole provided in the base of the One-hand Control, run conduit and
wiring to the Operator Station, referring to Figure 2-24 for terminal locations on the
bottom of the One-hand Control.
5. Measure wires to fit before cutting, then make the appropriate wiring connections,
referring to Table 2-12, below, and Figure 1 at the end of the manual.
* Refer to Figure 2-24, above
6. Fasten the switch cover onto the base with the screws provided.
7. Tighten all conduit connections that may have been loosened during installation.
8. Close and latch the cover of the Operator Station and WPC 1000.
9. Make sure that you have run all your ground wires. Do not use conduit as ground.

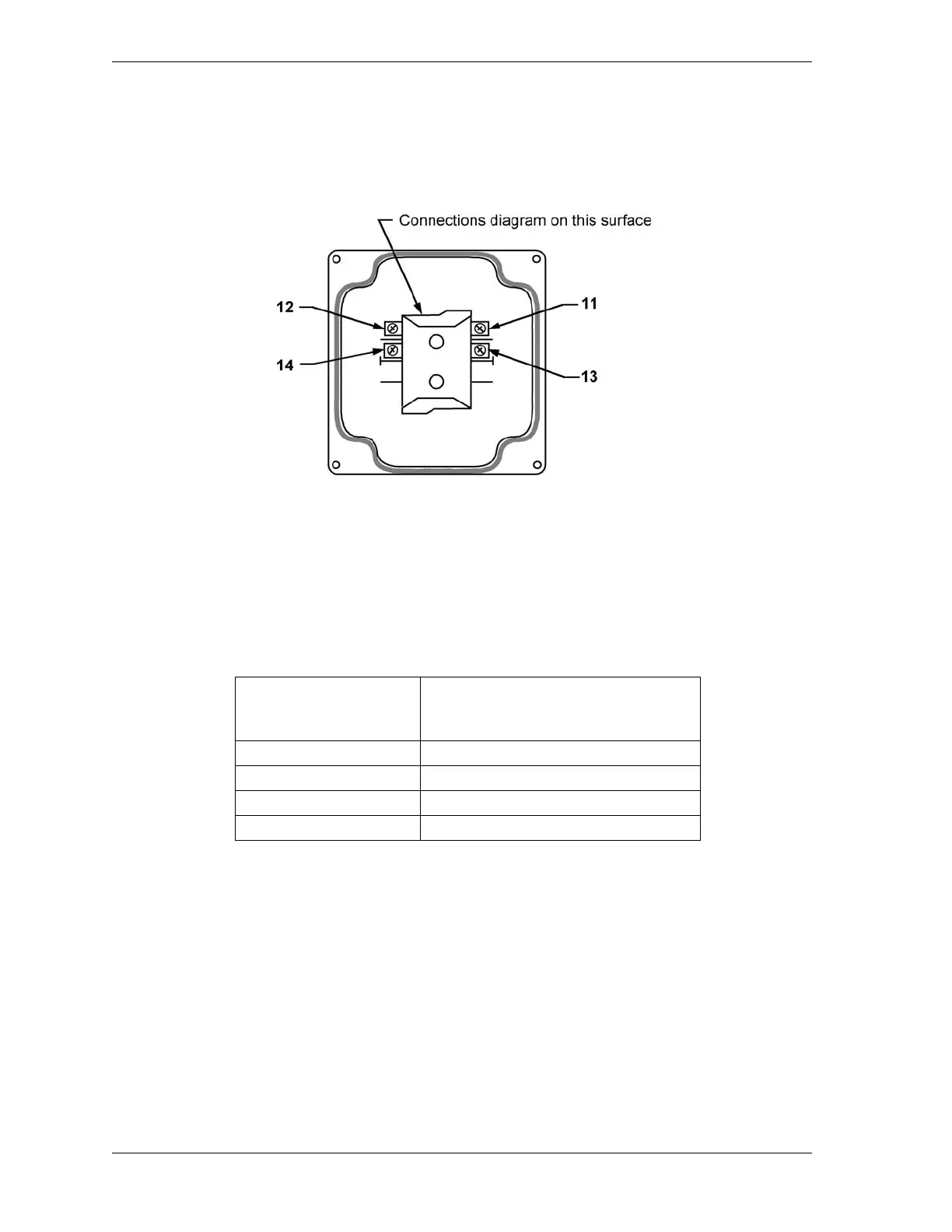

Figure 2-24. Wiring Connections in One-hand Control Switch
(Switch Cover, Bottom View)
Table 2-12. One-hand Control Wiring Connections
One-hand Control
Terminal # *
WPC 1000 Control Board and
Operation Station Connections
Pin# Signal
11 46 Palm switch N/C input +
12 Blue wire in Operator Station cable
13 4 One-hand input +
14 Blue wire in Operator Station cable
