5. At the other end of the cable, connect the wires to the Control board connector terminals,
as shown in Table 2-16, page 2-69 and Figure 1 at the end of the manual.
6. Mount the Operator Station in a permanent location after performing the applicable
verification and checkout tests and calculating the correct safety distance. Refer to
Figure 2-8 and Figure 2-9, above, for mounting dimensions.

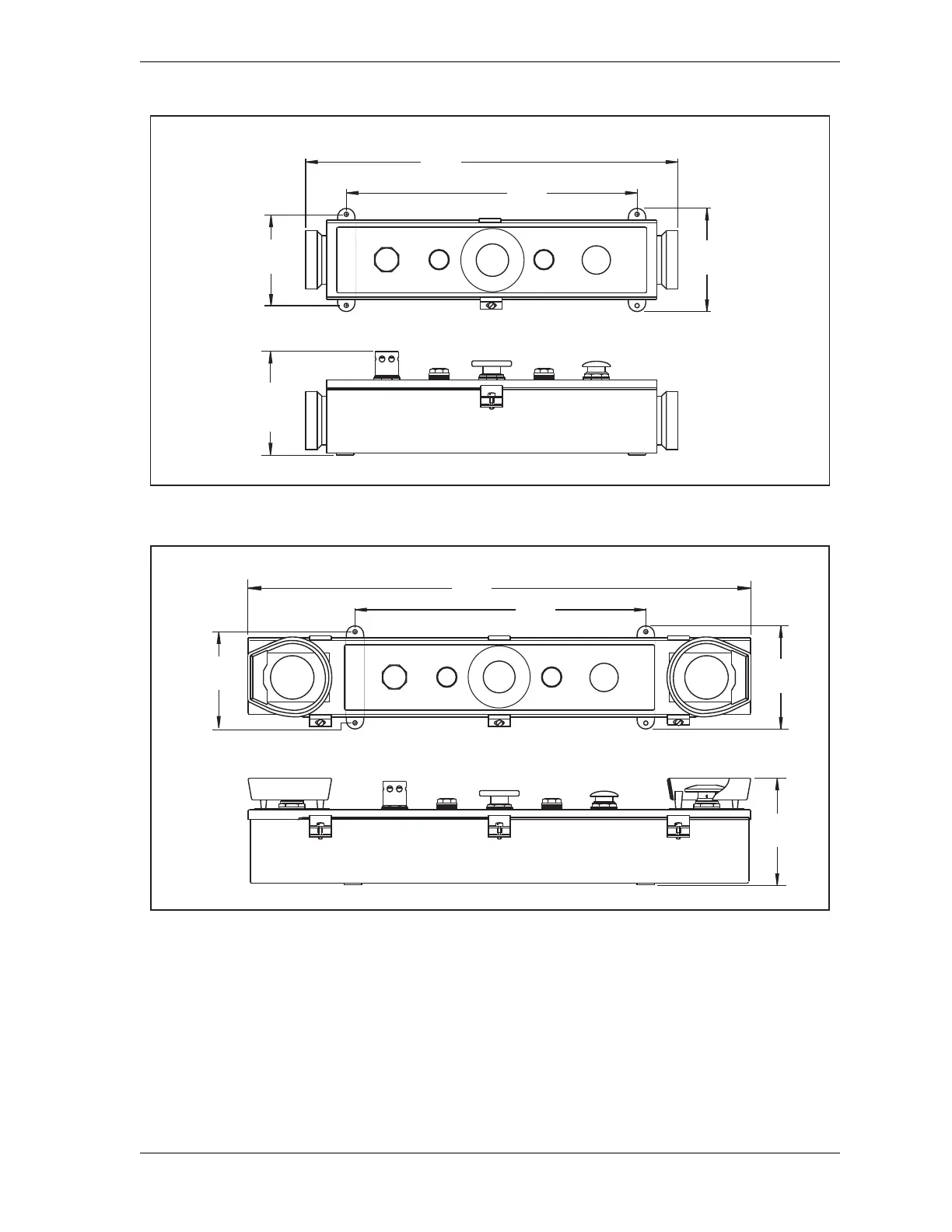

Figure 2-8. Pre-wired Operator Station with Side Run Buttons: Mounting Dimensions
Figure 2-9. Pre-wired Operator Station with Top Run Buttons: Mounting Dimensions
MUTE
PALM
TIME
PRIOR
ACT
INTRISS
W
TOP
STOP
5.8
(148)
REF
4.69
(119.1)
16.75
(425.5)
R
U
N
/
I
N
C
H
R
U
N
/
I
N
C
H
5.50
(139.7)
21.25
(539.8)
Dimensions:
inches
(mm)
E
M
E
R
G
E
N
C
Y
S
T
O
P
6.06
(154.0)
MUTE
PALM
TIME
PRIOR
ACT
INTRISS
W
TOP
STOP
16.75
(425.5)
28.75
(730.3)
5.50
(139.7)
4.69
(119.1)
E
M
E
R
G
E
N
C
Y
S
T
O
P
Dimensions:
inches
(mm)
