3-6 Initialization, Setup, and Checkout
The next time you start the press, WPC 1000 will set the Start-time Limit to twice the Start
Time measured on the first stroke. This value cannot be changed manually.
Viewing the Start-time Limit
To view the Start-time Limit, do the following:
1. Press the Reset/Select button repeatedly, until the “Stopping Angle” indicator segment
illuminates.
2. Turn the WPC Settings key switch to “–” (i.e., clockwise). The Start-time Limit in
milliseconds is shown in the LED display.
Viewing the Last Start Time
To view the Start Time measured the last time you started your press, do the following:
1. Press the Reset/Select button repeatedly until the “Stopping Angle” indicator segment
illuminates.
2. Turn the WPC Settings key switch to “+” (i.e., counterclockwise). The Start Time in
milliseconds that was measured the last time you started the press is shown in the LED
display.

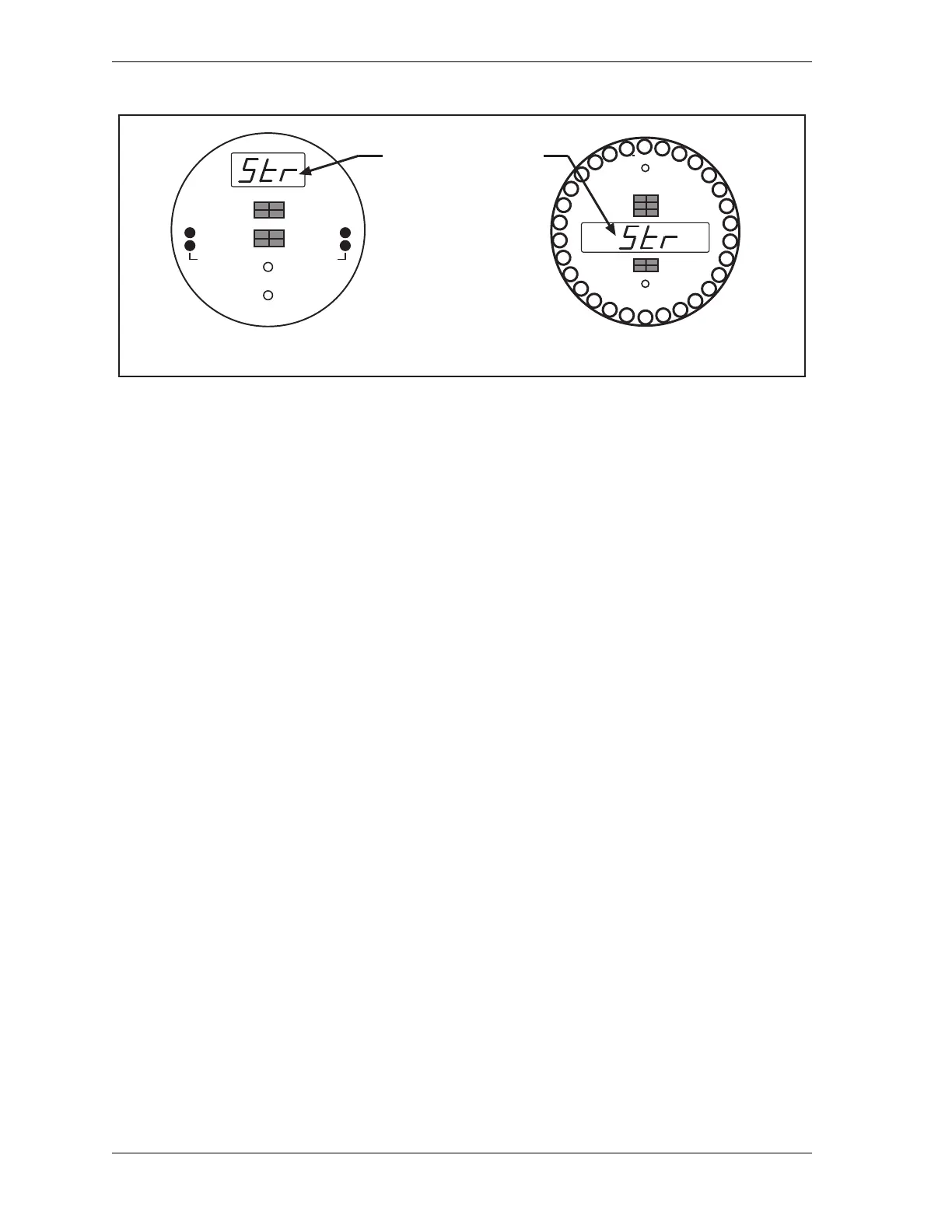

Figure 3-4. WPC 1000 Displays Showing “Initializing Start-time Limit” (“Str”) Message
BRAKE WARNING
INTERRUPTED STROKE
TOP STOP ANGLE
AUTO CARRYUP
STOP TIME LIMIT
MICRO-INCH
STOPPING TIME
STOPPING ANGLE
90
° STOP TEST
COUNTER
COUNTER PRESET
ANGLE / SPM
INTERRUPTED STROKE
BRAKE WARNING
TOP STOP ANGLE
AUTO CARRYUP
ANGLE / SPM
90° STOP TEST
STOP TIME LIMIT
MICRO-INCH
STOPPING TIME
STOPPING ANGLE
WPC 1000 Standard Display WPC 1000 Optional Counter Display
CAM 2
off
on
CAM 1
on
off
Initializaing Start-time Limit
message
