Xerox® B205/B215 Multifunction Printer Service Manual
REP 4.9
Repairs / Adjustments
Initial Release
22. Remove the Left and Right Frames from the Middle Frame routing the wires through the
f
rames as needed.
23. Remove the following items, F
igure 16:
a. Registration Roll Pivot Gear, P
L 4.1 Item 25.
b. Registration Roll Drive Gear, PL 4.1 Item 26.
c. Pivot Plate, PL 4.1 Item 27.
d. Collar, PL 4.1 Item 28.

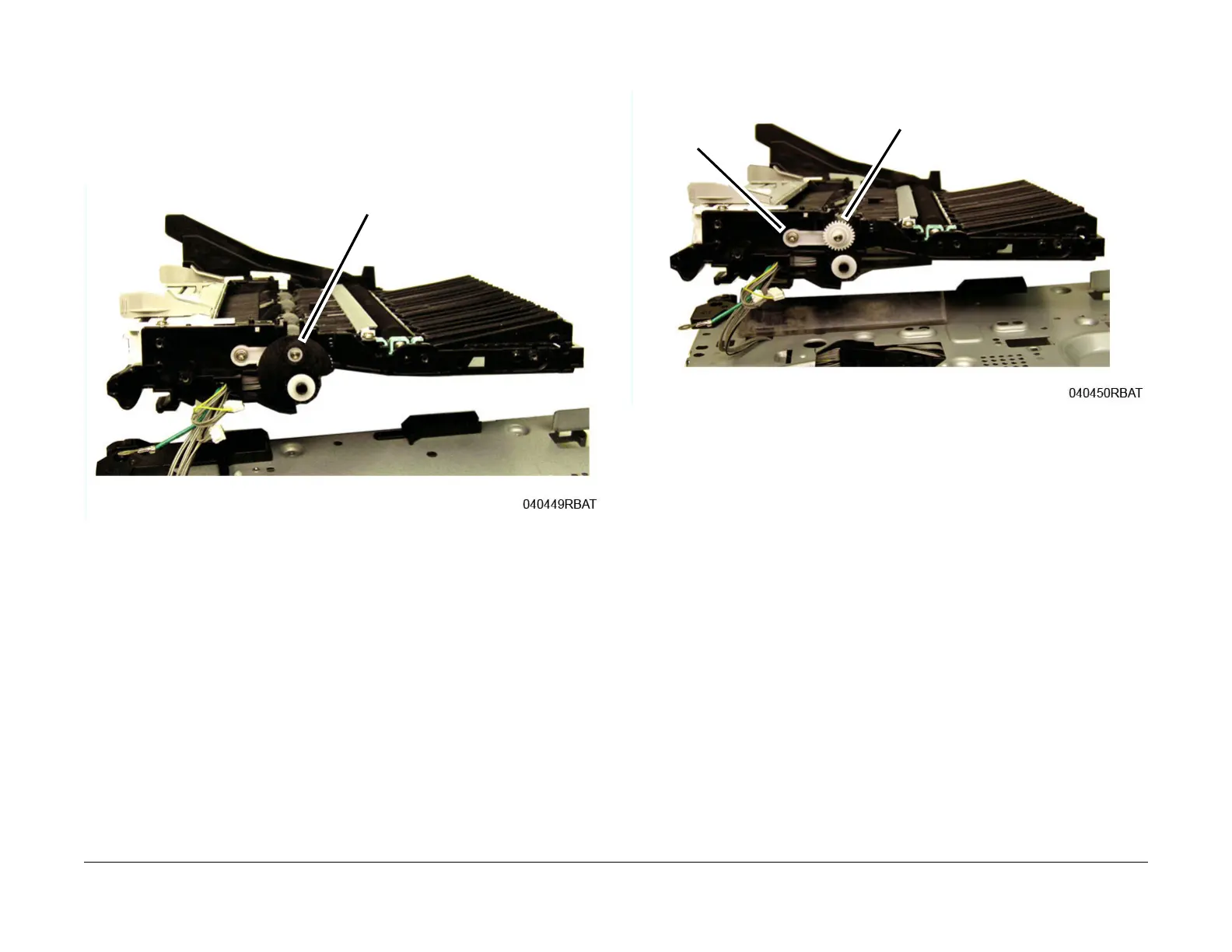

Figure 16 Registration pivot items removal
24. Remove the screw attaching the Registration Holder, PL 4.
4 Item 16, then remove the
Regist
ration Holder, Figure 17
.
Figure 17 Registration holder removal
Screw
Registration Holder
(behind the Drive Gear)
To Next Page
