July 2019
4-32
Xerox® B205/B215 Multifunction Printer Service Manual
REP 4.9
Initial Release
Repairs / Adjustments

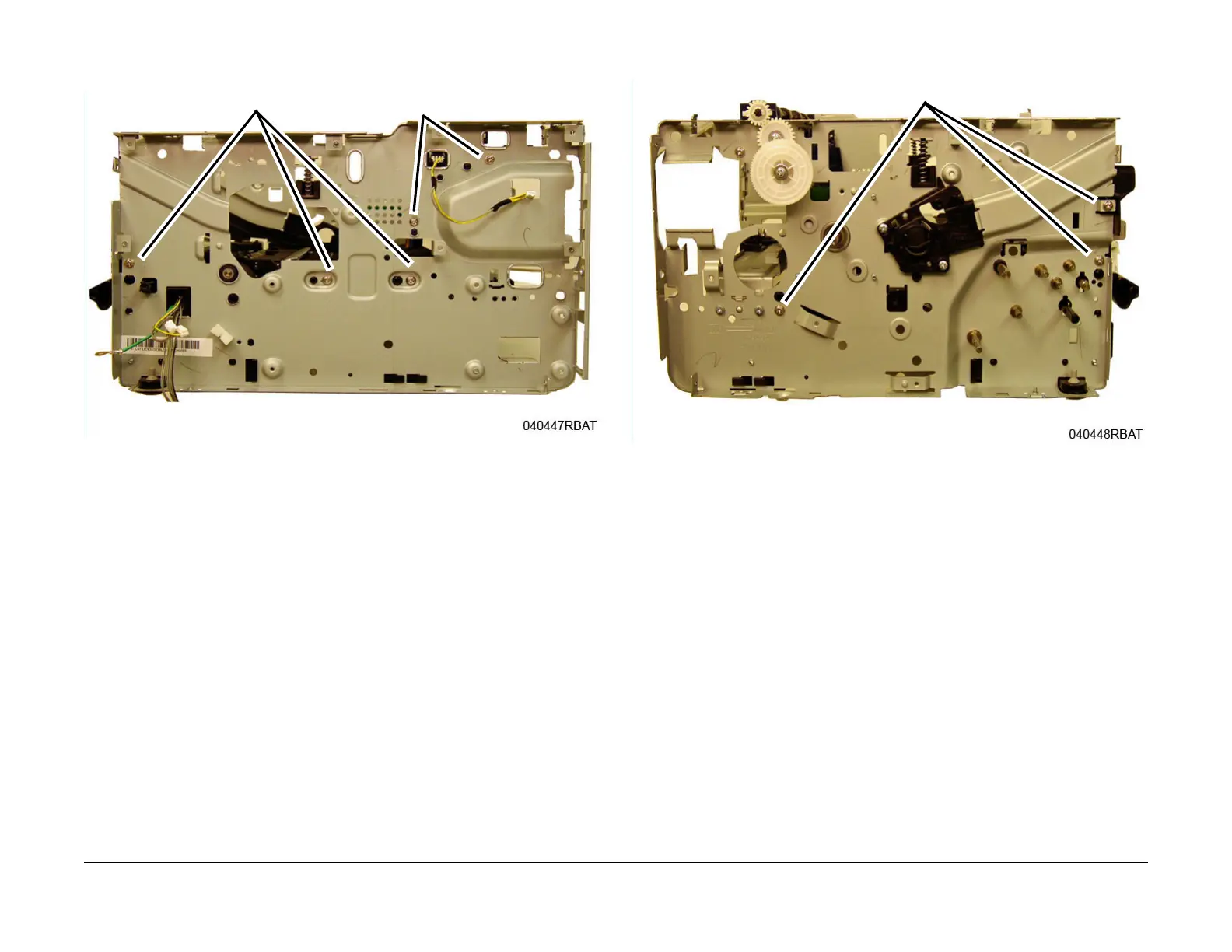

20. Remove three screws attaching the Middle Frame, the two screws attaching the Exit
Frame to the Right Main Frame, Figure 14
.
Figure 14 Right Frame screws removal
21. Remove three screws attaching the Middle Frame, F
igure 15.
Figure 15 Left Frame Screw Removal
To Next Page
