July 2019
4-31
Xerox® B205/B215 Multifunction Printer Service Manual
REP 4.9
Repairs / Adjustments
Initial Release

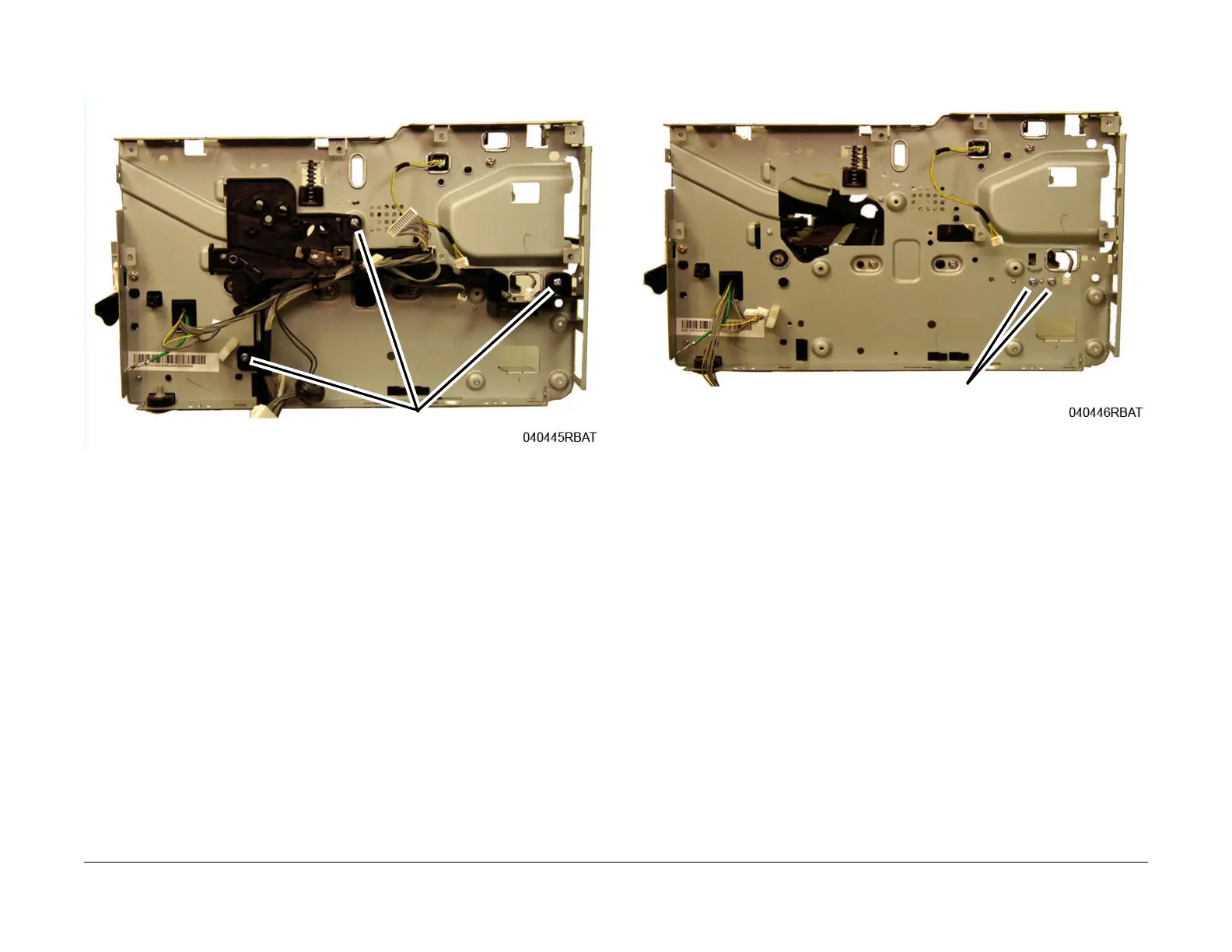

18. Remove two screws attaching the wire harness guide, two screws attaching the high volt-
age contact guide, then remove the guides, F
igure 12.
Figure 12 Wire Guides and HV Contact Guide
19. Remove two screws attaching the Exit Sensor Plate, F
igure 13.
Figure 13 Exit Sensor Plate Screws
To Next Page
