Xerox® B210 Service Manual
System Overview
Initial Release
General Procedures - Information
Paper Path

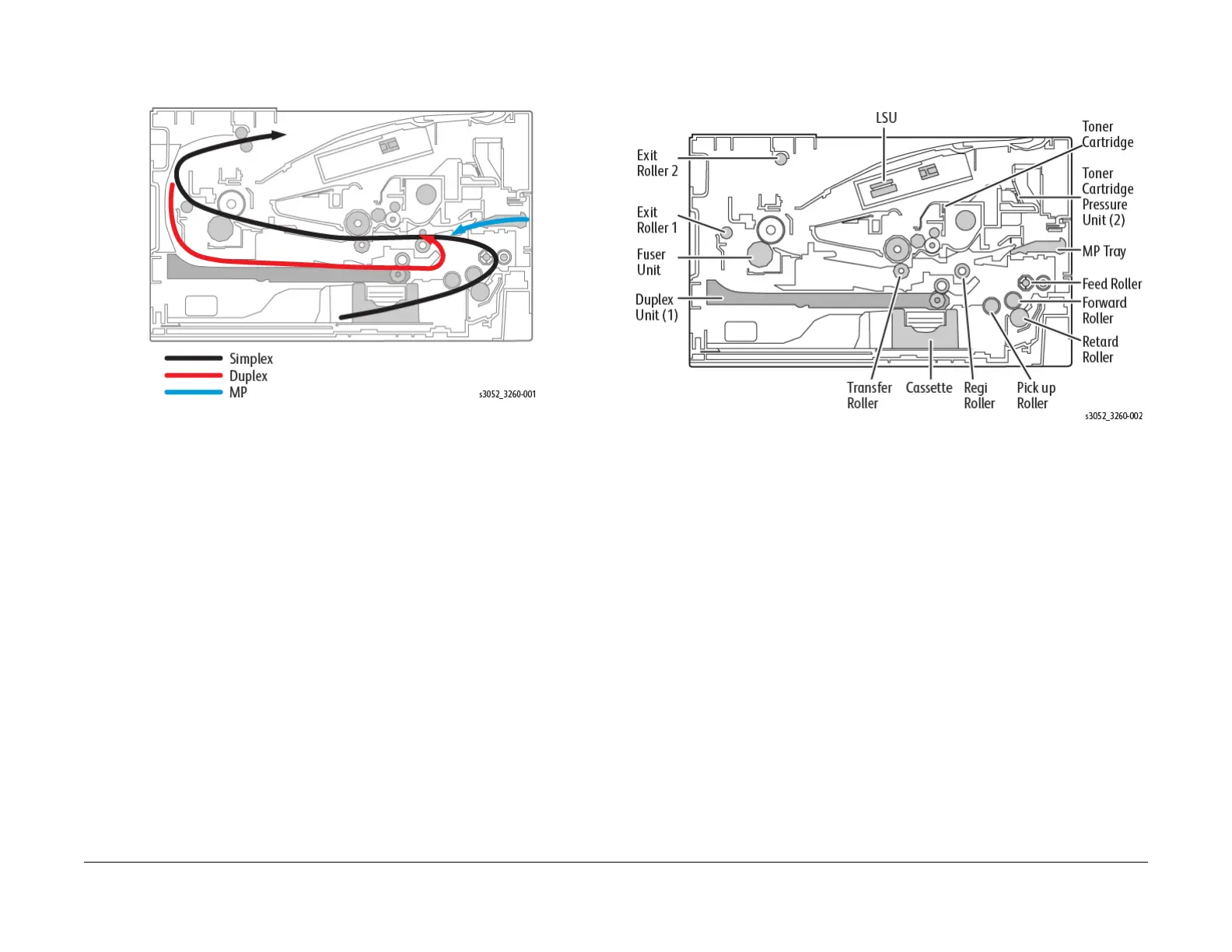

The following diagrams display the path that the paper follows during the printing process.
Figure 1 Paper Path
System Layout
The figures below illustrates the mechanical parts of the printer.
Figure 2 System Layout
