The Maintenance screen is displayed.
7. Using the down button, scroll to the next Maintenance page/screen.
8. Select Alignment Adjustment.
The Alignment Adjustment screen displays.
9. Select Auto Alignment Adjustment.
The Auto Alignment Adjustment screen displays.
10. Select the desired target tray for the adjustment.
11. If necessary, select the area coverage.
Area coverage can be one of the factors that changes the alignment. By adjusting a
specific area coverage level, you set the value from 1 to 10. As the value goes higher,
the area coverage will be higher accordingly. However for most cases, setting value
1 is fine. Furthermore, you can select a different setting for side 1 and side 2 of the
print.
12. Select the number of sample sheets.
With multiple samples, the software uses the average values for the adjustment; this
means the variation between the sheets is reduced.
For 8.5 x 11 (A4), the paper needs to be in the SEF direction.
13. Select Print.
The sample chart is printed.
14. To correct the misalignment, scan the 4 sides of sample chart, lead edge and trail
edge for each front and back side. Follow the instructions on the UI.

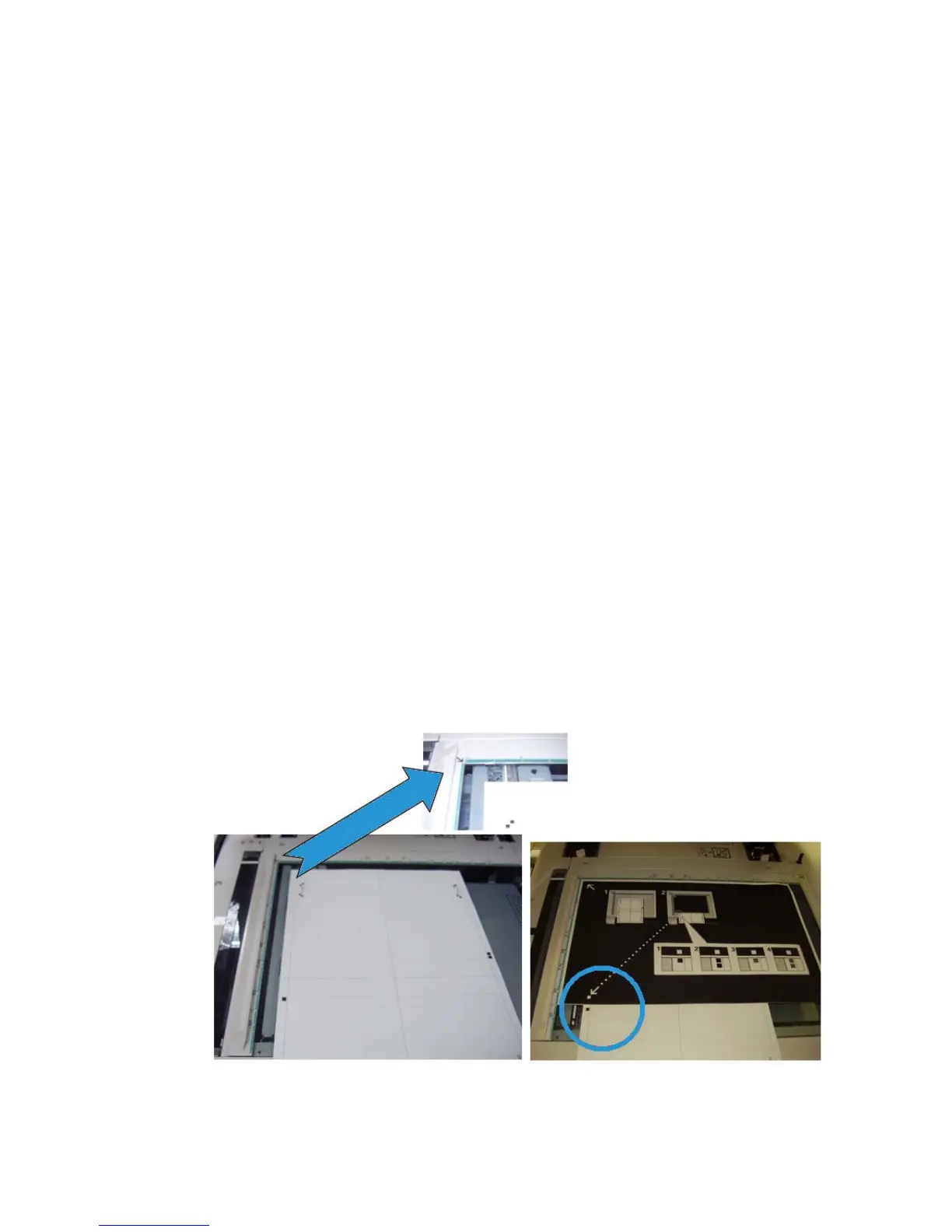

a) The test pattern must NOT be placed against the registration edge (minimum of
20mm) and not skewed more than 15 degrees.
Ensure there is space between the document glass edge and the test pattern.
