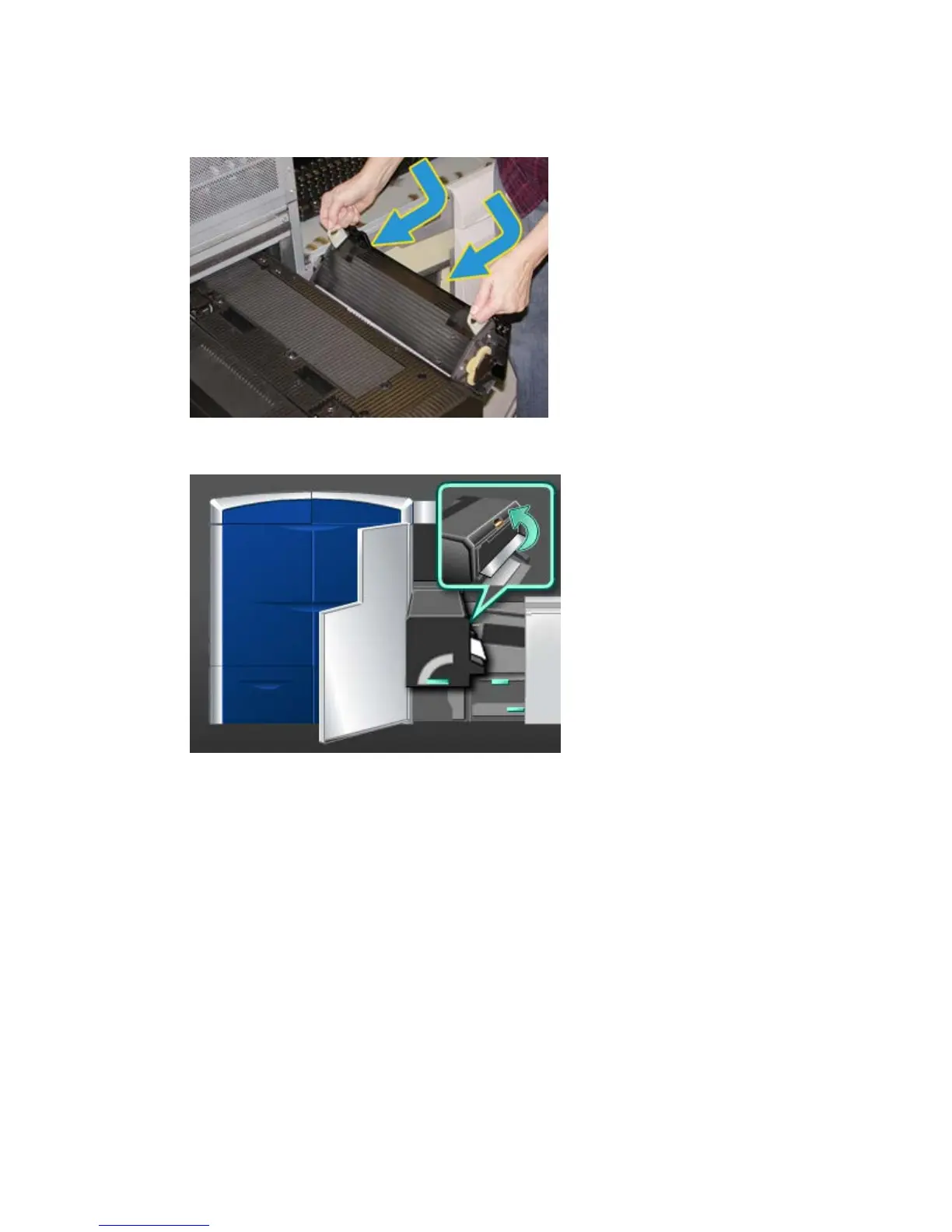

6. Hold the assembly by the handles with both hands and insert the assembly into the
fuser.
7. Close the fuser exit area.
8. Grasp handle 5 and gently push in the fuser until it stops.
9. Rotate handle 5 in the direction of the arrow to lock the fuser module in place.
10. Close the left and right front doors (print engine right side).
11. Follow the instructions on the UI to restart your print job.
9-25
Xerox
®
Color 800/1000 Press
User Guide
Maintenance
