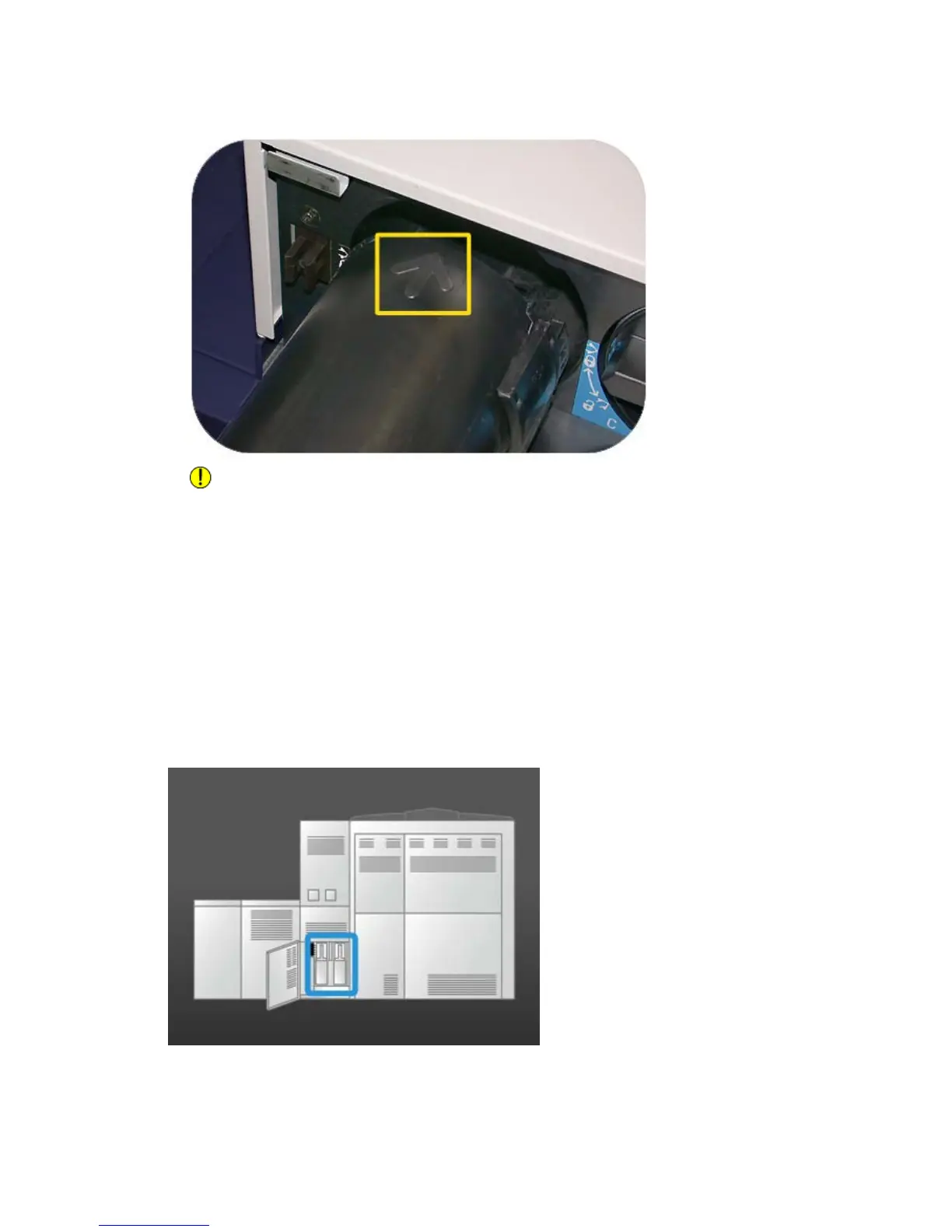

7. To install the new cartridge, insert it into the compartment with the arrow at the top
and gently push it in as far as it will.
Caution
If more than one cartridge needs to be replaced at the same time, ensure that the
cartridges are replaced in their correct color locations.
8. Rotate the cartridge to the lock position.
9. On the print engine left side, close the upper right and/or upper left door(s).
Dry ink/toner waste bottle
The dry ink/toner waste bottle collects the waste dry ink/toner that occurs during the
printing process. The machine contains two dry ink/toner waste bottles which are both
located in the rear of the machine.
Xerox
®
Color 800/1000 Press
9-20
User Guide
Maintenance
