Paper jams in area 5

Warning

Be careful when clearing jams in the fuser area, the fuser is extremely hot and will cause

injury.

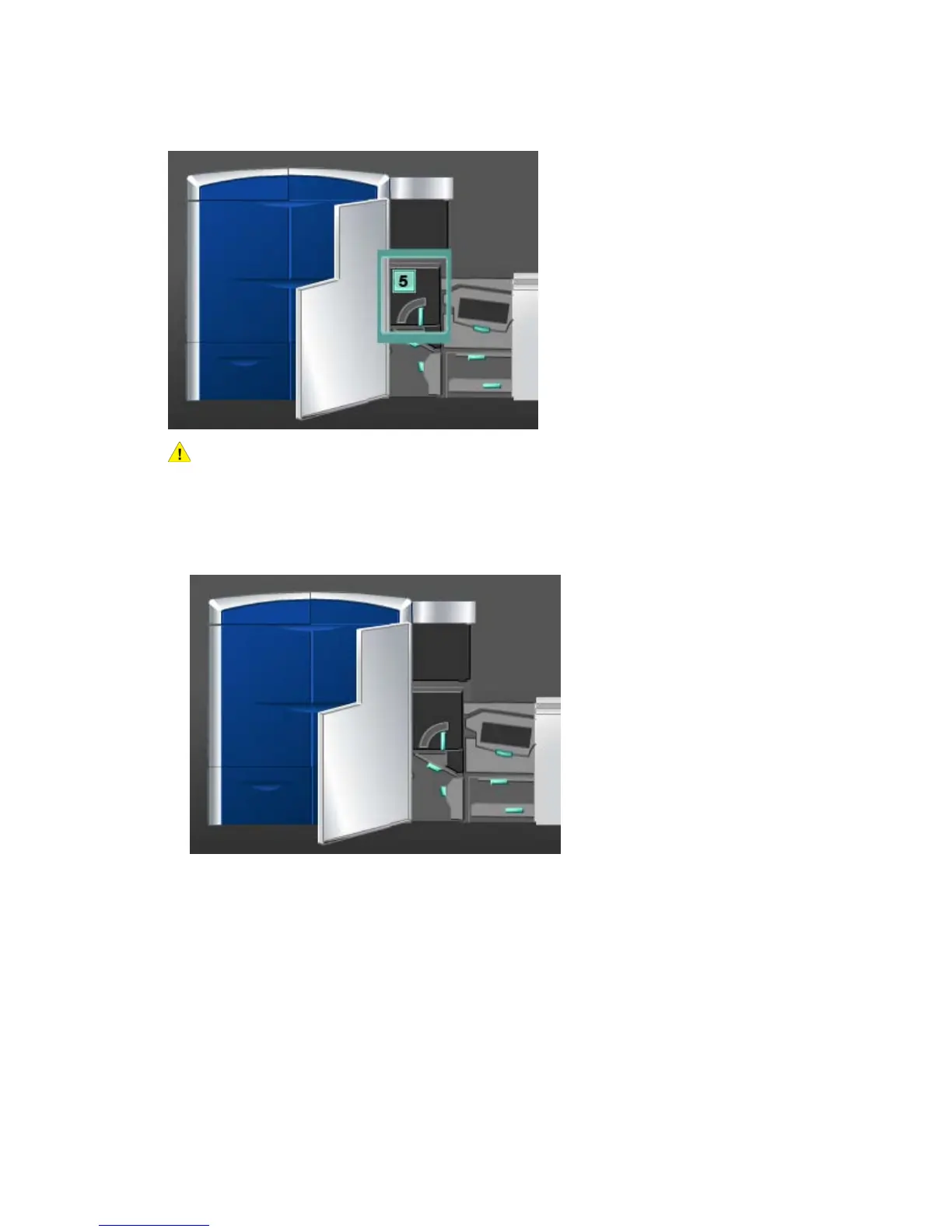

1. Open the left front door (print engine right side).

Xerox

Color 800/1000 Press

10-14

User Guide

Problem solving
