13 Book stacker tray Full indicator
This LED flashes when a binding operation is in process. A steady green light indicates
that the Book stacker tray is full.
14 Entrance transport front door
Open this door to clear jams from the incoming paper path area (E4). Also, the adhesive
pellet scoop is stored in this area.

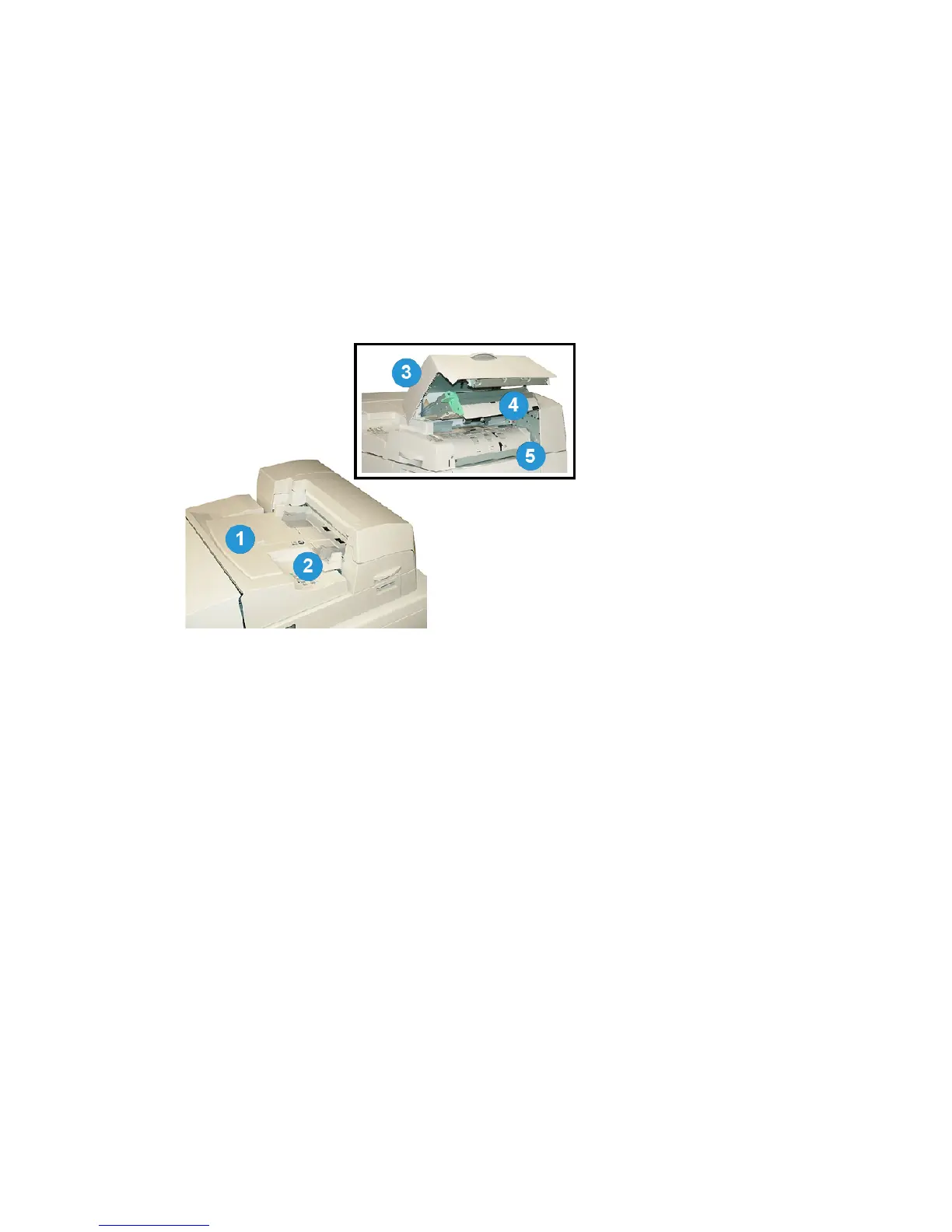

Cover inserter
1 Cover inserter tray
This tray is for loading cover media and inserts that will be bound with to the book
block during the binding process.l
2 Paper width guide
Adjust this guide so that it touches the loaded media in the tray.
3 Inserter cover
Open this cover to access internal components.
4 Inserter inner cover
Open this cover to clear jams.
5 Right inserter baffle
Open this baffle to clear jams.
16-3
Xerox
®
Color 800/1000 Press
User Guide
Perfect Binder
