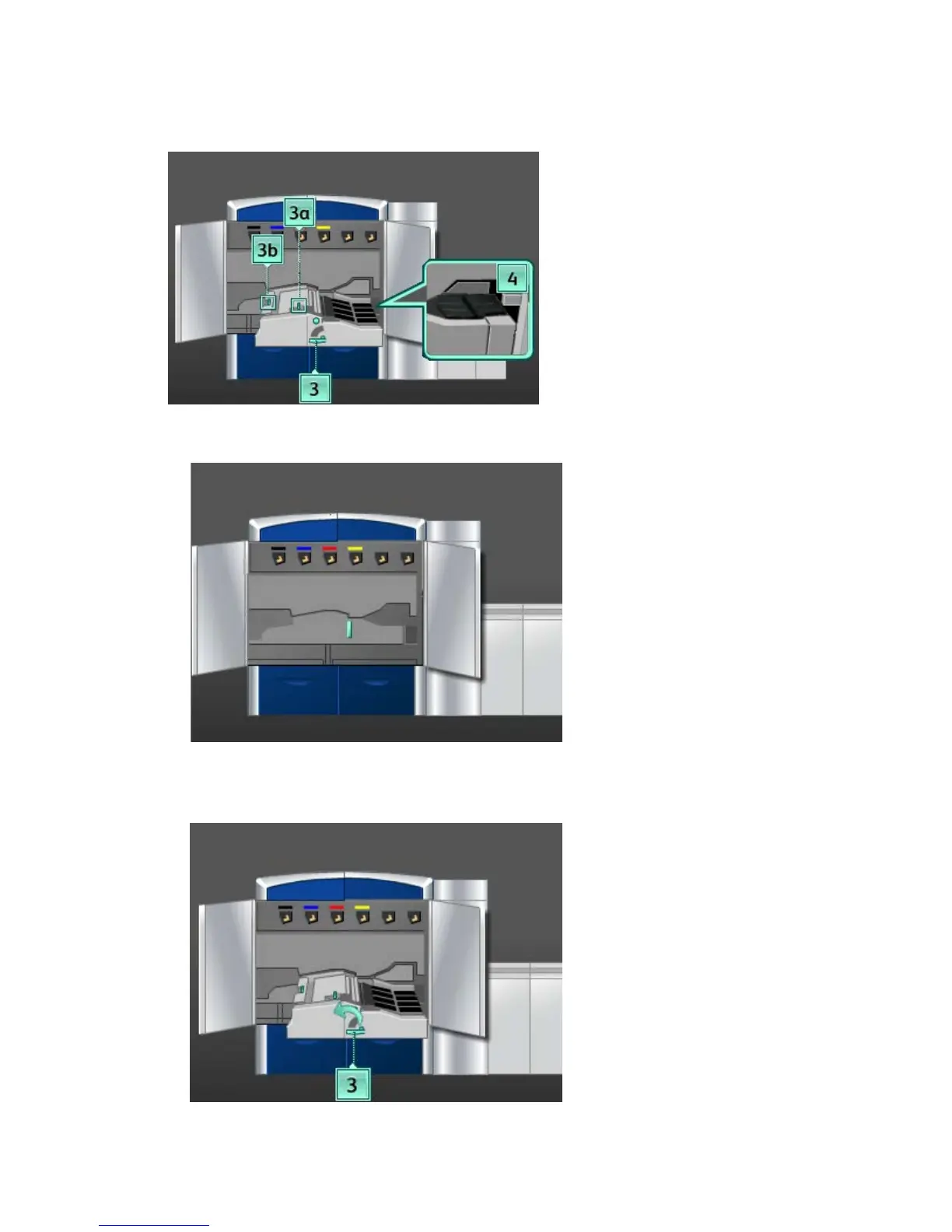

Cleaning the paper path areas 3 and 4

1. Open the left and right front doors (print engine left side).

2. Grasp handle 3 and rotate it in the direction of the arrow.

Xerox

Color 800/1000 Press

9-4

User Guide

Maintenance

Default Chapter3
- Table of Contents3
1 Product Overview13
- Quick Start/Links14
- User Interface14
- Print Server Overview16
- Full Width Array17
- Clear Dry Ink17
- Power On/Off the Machine19
- Feeding and Finishing Devices19
2 Where to Find Help27
- User Interface Help27
- Help on the World Wide Web28
- Print Server Customer Documentation28
3 Machine/Job Status29
- Machine Status29
- Job Status33
4 Submitting a Print Job35
- Printing from Your Computer35
- Printing from the Xerox Freeflow Print Server35
- Printing from the Xerox EX Print Server, Powered by EFI36
- Printing from the Xerox CX Print Server, Powered by Creo36
5 System Administrator Overview37
- Logging on as Administrator37
- System Administrator Options37
6 Paper Information39
- Loading Media in Trays 1 and 239
- Skew Adjustment Levers42
- Tray Properties45
- Tray Stock Mismatch46
7 Manage Stock Library49
- Recommended Media List (RML)50
- Stock Management51
- Manage Stock Library Window52
8 Advanced Stock Setup61
- Advanced Stock Setup Options62
  - Tips for Using Advanced Stock Setup Options63
  - Create/Modify Advanced Stock Setup Options64
- Paper Tray/Paper Feed Options65
- Paper Path/Paper Transportation Options68
- Fold Adjustment Profile75
9 Maintenance77
- Cleaning Procedures77
  - Cleaning the UI Screen77
  - Cleaning the Paper Path77
- Replacing Consumable Supplies93
10 Problem Solving103
- Locating the Machine Serial Number103
  - Machine Serial Number on the UI103
  - Serial Number on the Machine103
- Calling for Service104
- General Problems105
- Jam Clearance109
- Fault Codes126
- Image Quality148
  - Charge Corotrons150
11 Technical Data153
- Machine Specifications153
- Paper Specifications155
- Environmental Specifications156
12 Offset Catch Tray (OCT)157
- Enabling the Offset Mode on the EX Print Server157
13 Oversized High Capacity Feeder (OHCF)159
- Overview159
  - Postcard Bracket159
    - Using the Postcard Bracket160
- Loading Media in the OHCF162
- Skew Adjustment Levers165
- Tray Properties167
- Tray Stock Mismatch168
- OHCF Problem Solving169
  - Clearing OHCF Jams169
  - OHCF Fault Codes175
- OHCF Specifications176
14 Interface Module179
- Overview179
  - Control Panel180
  - Paper Path181
- Paper Curl Settings on the Interface Module181
  - Preset Decurler Settings181
  - Manual Decurler Buttons181
- Problem Solving182
  - Clearing Jams182
  - Fault Codes186
15 High Capacity Stacker (HCS)189
- Overview189
- Unloading the Stacker Tray192
- Problem Solving193
- Specifications203
16 Perfect Binder205
- Binder Components205
- Book Binding Path211
- Power On/Off214
  - Power Saver Mode214
- Loading Media in the Cover Inserter Tray215
- Removing Books from the Binder216
- Submitting a Job to the Binder216
- Maintenance229
- Binder Problem Solving231
- Binder Specifications275
17 Standard/Booklet Maker Finisher279
- Manual Decurling Feature on the Finisher281
- Folding Feature282
  - Fold Types282
- Loading Paper/Tabs in Tray 8/T1 (Post-Process Inserter)284
- Maintenance285
- Finisher Problem Solving292
- Specifications321
  - Standard/Booklet Maker Finisher321
  - Optional C/Z Folder324
18 Squarefold Trimmer Module325
- Overview325
- Identifying the Components326
- Square Fold Feature328
  - Square Fold Options329
  - Accessing the Square Fold Options330
- Trimmer Feature331
- Hints and Tips334
  - Printing Full-Page Images on Booklets334
  - Follow These Tips335
- Problem Solving336
  - Jam Clearance336
  - Fault Codes340
- Technical Data342
  - Specifications342
19 Standard Finisher Plus343
- Overview343
- Finisher Module344
- Finishing Transport348
  - Finishing Transport Main Components348
  - Finishing Transport Status Indicators349
- Standard Finisher Plus Maintenance350
- Problem Solving356
- Specifications383
  - Finisher Module Specifications383
    - Optional C/Z Folder387
  - Finishing Transport Specifications387
