Xerox Color 800 - Clearing E3 Jams

Clearing E3 jams
Use the following procedure to clear jams when the E3 LED is lit on the SquareFold
Trimmer Module control panel.

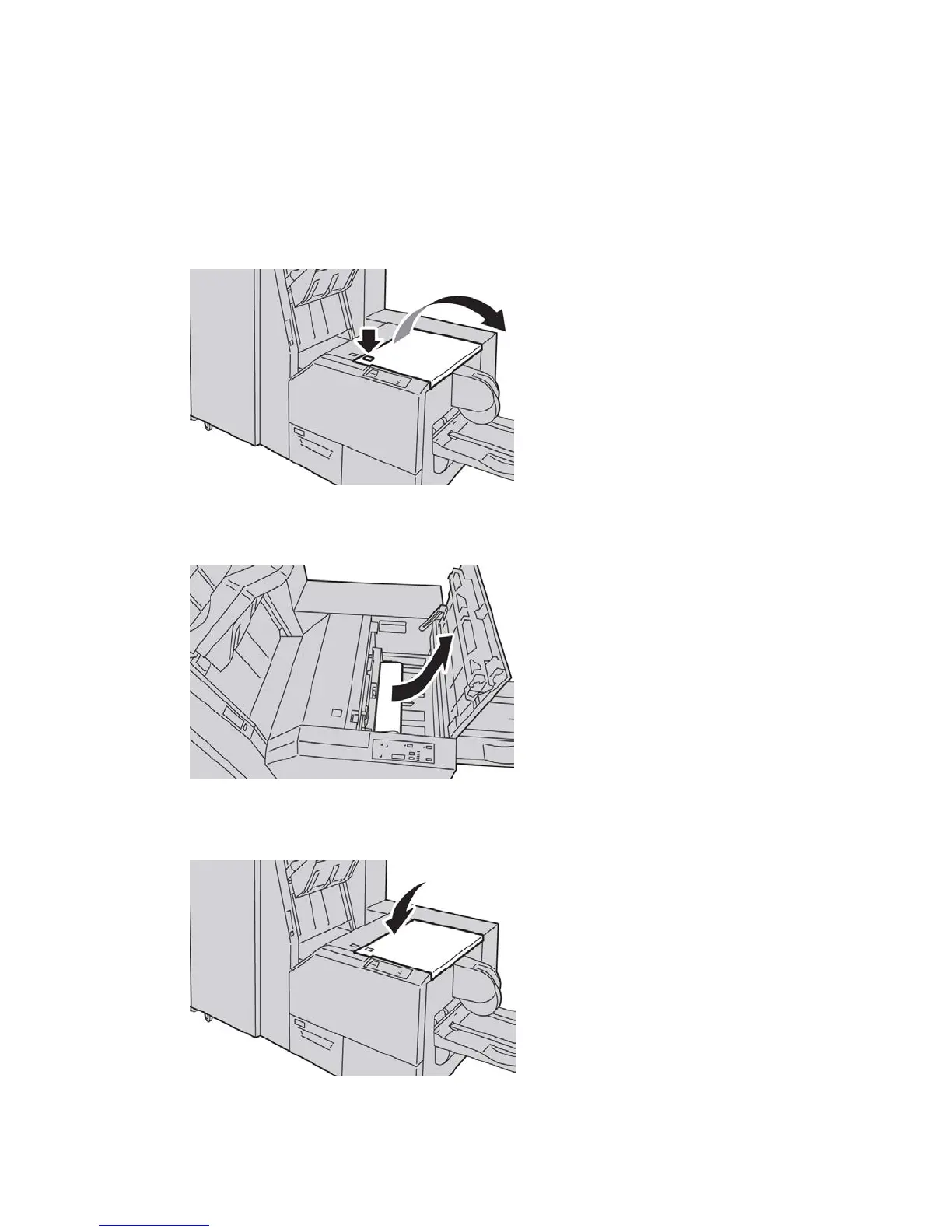

1. Make sure that the machine is not in operation, and press the button on the right
cover of the Trimmer unit to open the cover.
2. Remove the jammed paper.
3. Close the right cover of the Trimmer unit.
18-15
Xerox
®
Color 800/1000 Press
User Guide
SquareFold Trimmer Module
