Using the Postcard bracket
Use the following procedure for installing and using the Postcard bracket when printing
on smaller media (4 x 6 in./101.6 x 152.4 mm).

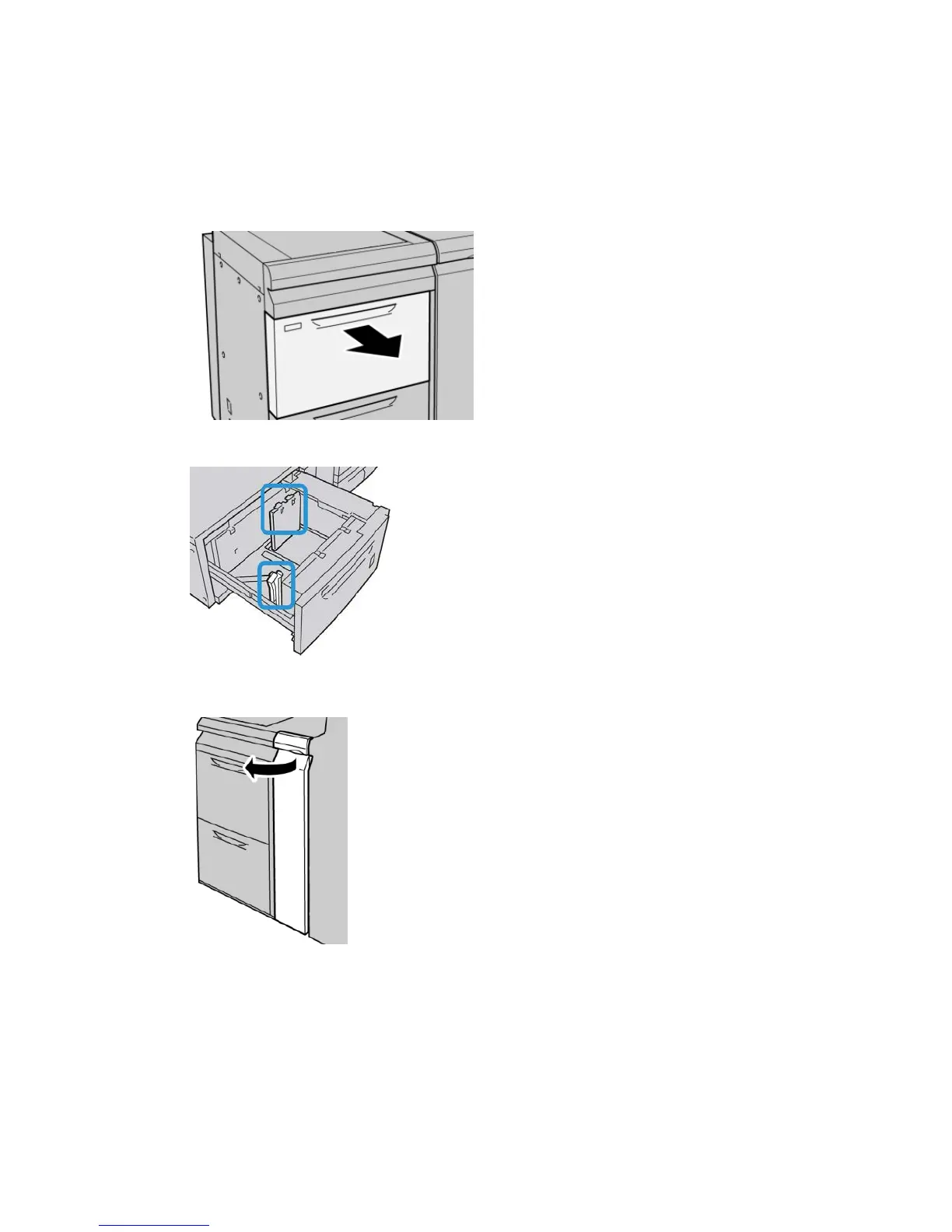

1. Slowly open one of the paper trays until it stops and remove the paper.
2. Move the paper guides out to their largest position.
3. Open the front cover of the OHCF.
4. Remove the Postcard bracket from inside the OHCF front cover.
