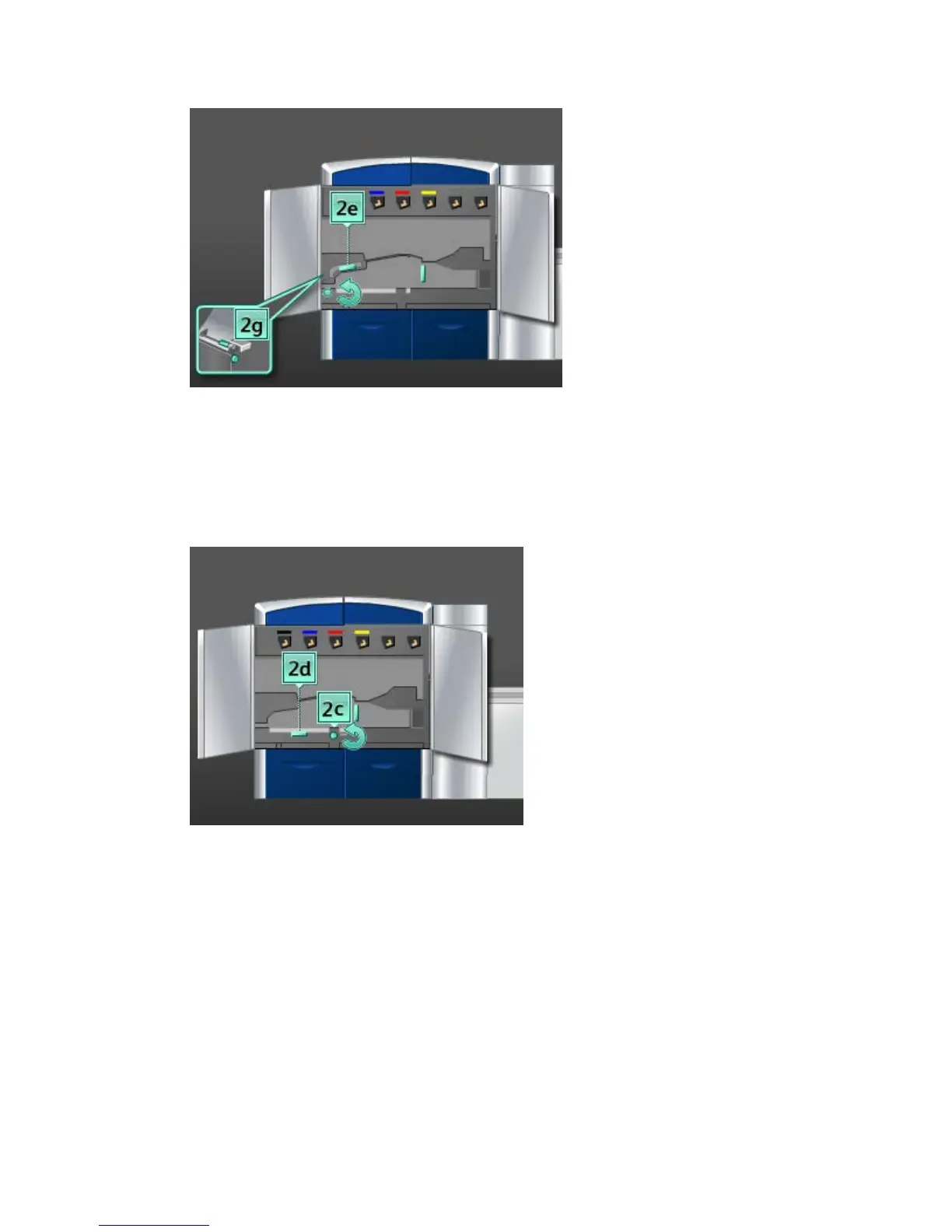

3. Rotate knob 2g in the direction of the arrow to remove jammed paper.
4. Return lever 2e to its original position.
5. Push down on lever 2d and rotate knob 2c in the direction of the arrow to remove
jammed paper.
6. Return lever 2d to its original position.
7. Grasp lever 2b and move it to the right. Rotate knob 2c in the direction of the arrow
to remove jammed paper.
10-9
Xerox
®
Color 800/1000 Press
User Guide
Problem solving
