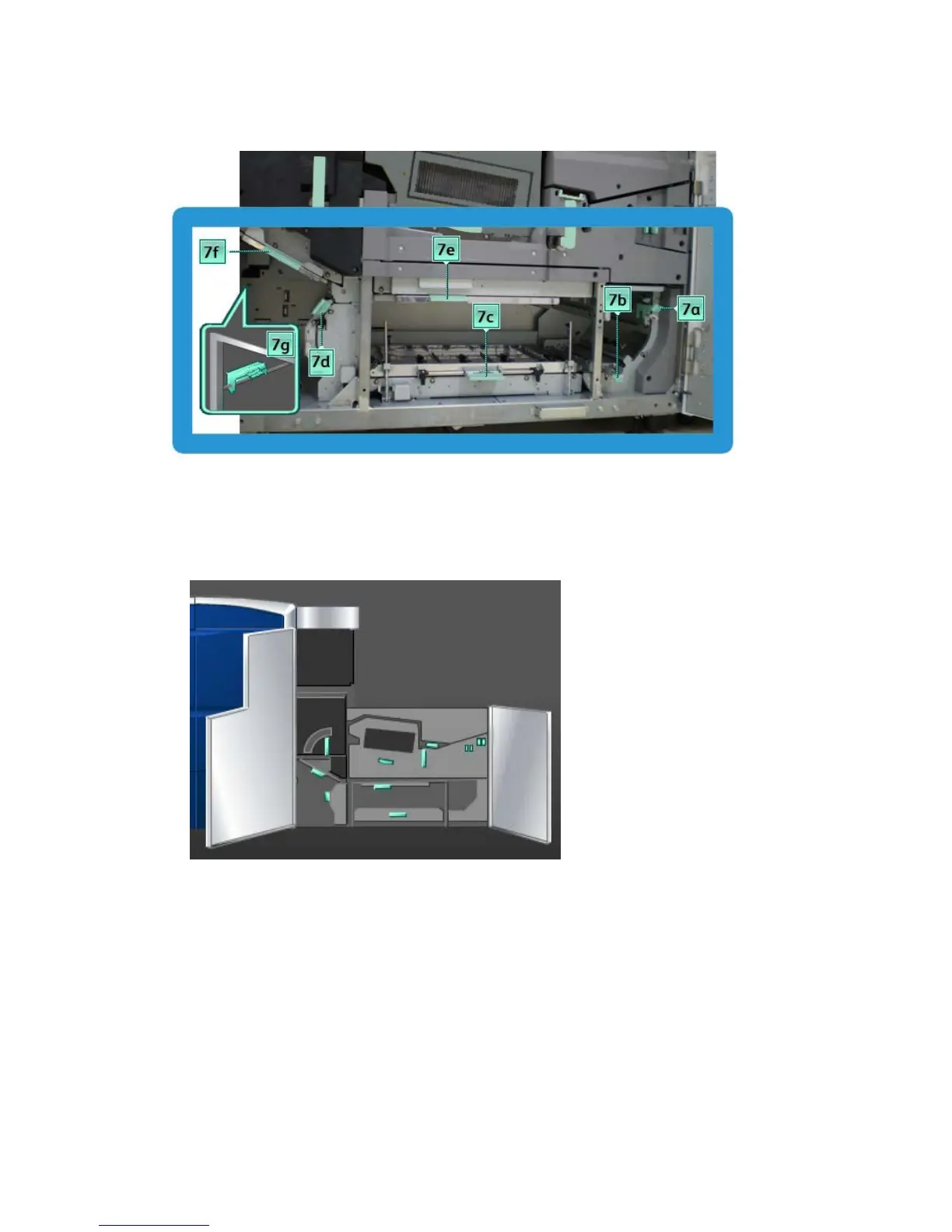

Paper jams in area 7

Note

Area 7 is used for 2-sided (duplexing) only.

1. Open the left and right front doors (print engine right side).

Xerox

Color 800/1000 Press

10-20

User Guide

Problem solving
