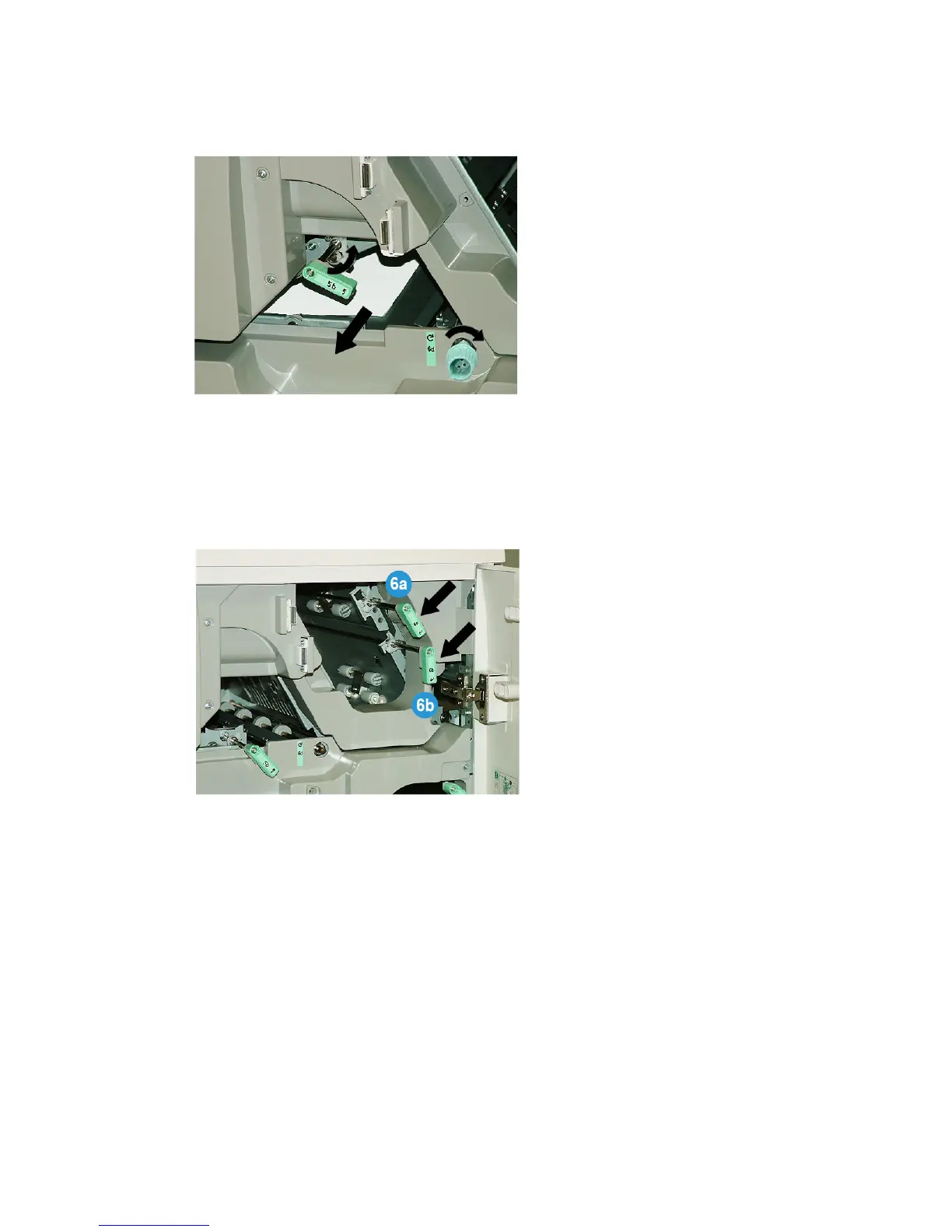

4. Lift handle 5b, rotate knob 6d, and remove any jammed paper.

5. Return handle 5b to its original position.

6. Open areas 6a and 6b.
