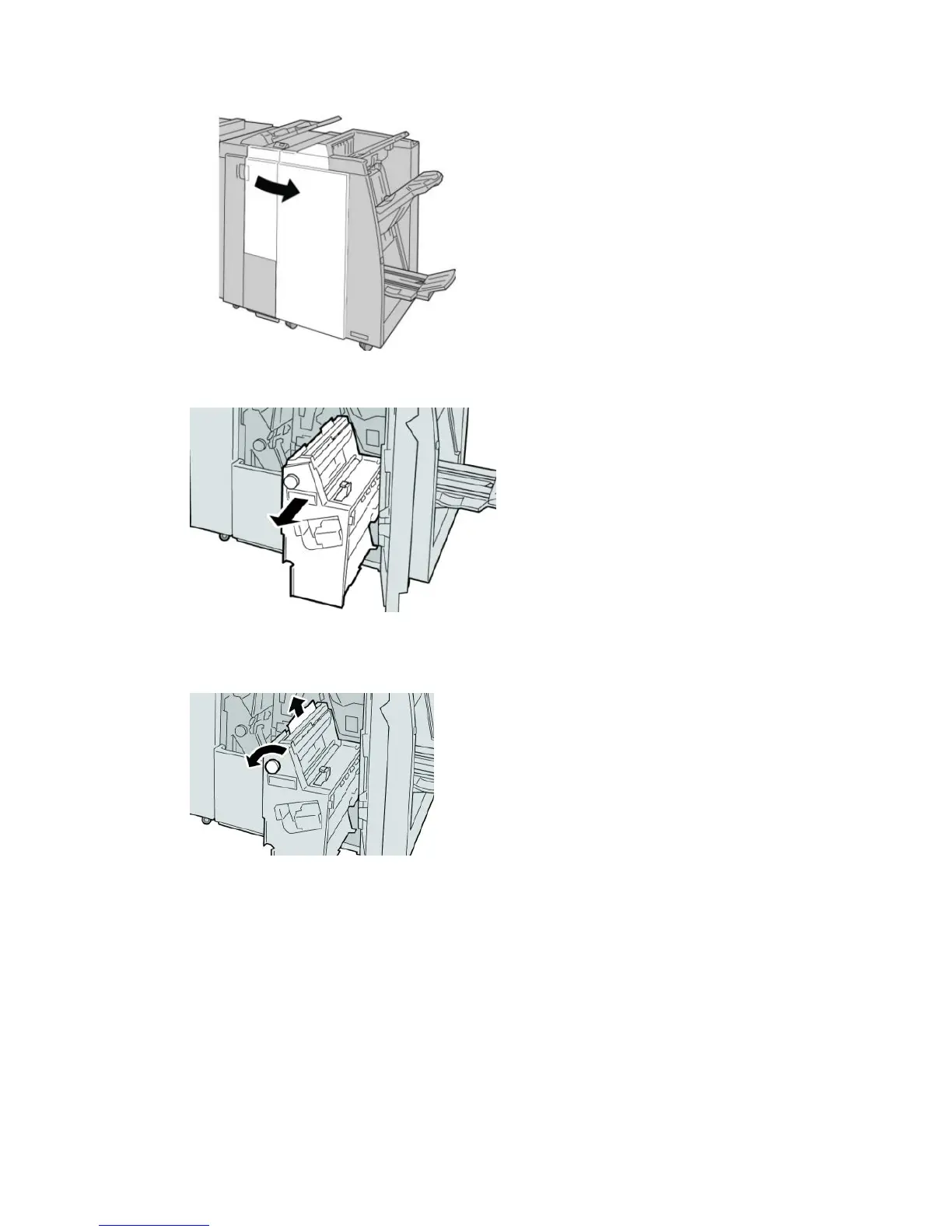

2. Open the Right Cover on the finisher.

3. Pull out unit 4.

4. Turn the knob 4a to remove the jammed paper from the left side of unit 4.

Note

If paper is torn, check inside the machine and remove it.

Xerox

Color 800/1000 Press

17-30

User Guide

Standard/Booklet Maker Finisher

Default Chapter3
- Table of Contents3
1 Product Overview13
- Quick Start/Links14
- User Interface14
- Print Server Overview16
- Full Width Array17
- Clear Dry Ink17
- Power On/Off the Machine19
- Feeding and Finishing Devices19
2 Where to Find Help27
- User Interface Help27
- Help on the World Wide Web28
- Print Server Customer Documentation28
3 Machine/Job Status29
- Machine Status29
- Job Status33
4 Submitting a Print Job35
- Printing from Your Computer35
- Printing from the Xerox Freeflow Print Server35
- Printing from the Xerox EX Print Server, Powered by EFI36
- Printing from the Xerox CX Print Server, Powered by Creo36
5 System Administrator Overview37
- Logging on as Administrator37
- System Administrator Options37
6 Paper Information39
- Loading Media in Trays 1 and 239
- Skew Adjustment Levers42
- Tray Properties45
- Tray Stock Mismatch46
7 Manage Stock Library49
- Recommended Media List (RML)50
- Stock Management51
- Manage Stock Library Window52
8 Advanced Stock Setup61
- Advanced Stock Setup Options62
  - Tips for Using Advanced Stock Setup Options63
  - Create/Modify Advanced Stock Setup Options64
- Paper Tray/Paper Feed Options65
- Paper Path/Paper Transportation Options68
- Fold Adjustment Profile75
9 Maintenance77
- Cleaning Procedures77
  - Cleaning the UI Screen77
  - Cleaning the Paper Path77
- Replacing Consumable Supplies93
10 Problem Solving103
- Locating the Machine Serial Number103
  - Machine Serial Number on the UI103
  - Serial Number on the Machine103
- Calling for Service104
- General Problems105
- Jam Clearance109
- Fault Codes126
- Image Quality148
  - Charge Corotrons150
11 Technical Data153
- Machine Specifications153
- Paper Specifications155
- Environmental Specifications156
12 Offset Catch Tray (OCT)157
- Enabling the Offset Mode on the EX Print Server157
13 Oversized High Capacity Feeder (OHCF)159
- Overview159
  - Postcard Bracket159
    - Using the Postcard Bracket160
- Loading Media in the OHCF162
- Skew Adjustment Levers165
- Tray Properties167
- Tray Stock Mismatch168
- OHCF Problem Solving169
  - Clearing OHCF Jams169
  - OHCF Fault Codes175
- OHCF Specifications176
14 Interface Module179
- Overview179
  - Control Panel180
  - Paper Path181
- Paper Curl Settings on the Interface Module181
  - Preset Decurler Settings181
  - Manual Decurler Buttons181
- Problem Solving182
  - Clearing Jams182
  - Fault Codes186
15 High Capacity Stacker (HCS)189
- Overview189
- Unloading the Stacker Tray192
- Problem Solving193
- Specifications203
16 Perfect Binder205
- Binder Components205
- Book Binding Path211
- Power On/Off214
  - Power Saver Mode214
- Loading Media in the Cover Inserter Tray215
- Removing Books from the Binder216
- Submitting a Job to the Binder216
- Maintenance229
- Binder Problem Solving231
- Binder Specifications275
17 Standard/Booklet Maker Finisher279
- Manual Decurling Feature on the Finisher281
- Folding Feature282
  - Fold Types282
- Loading Paper/Tabs in Tray 8/T1 (Post-Process Inserter)284
- Maintenance285
- Finisher Problem Solving292
- Specifications321
  - Standard/Booklet Maker Finisher321
  - Optional C/Z Folder324
18 Squarefold Trimmer Module325
- Overview325
- Identifying the Components326
- Square Fold Feature328
  - Square Fold Options329
  - Accessing the Square Fold Options330
- Trimmer Feature331
- Hints and Tips334
  - Printing Full-Page Images on Booklets334
  - Follow These Tips335
- Problem Solving336
  - Jam Clearance336
  - Fault Codes340
- Technical Data342
  - Specifications342
19 Standard Finisher Plus343
- Overview343
- Finisher Module344
- Finishing Transport348
  - Finishing Transport Main Components348
  - Finishing Transport Status Indicators349
- Standard Finisher Plus Maintenance350
- Problem Solving356
- Specifications383
  - Finisher Module Specifications383
    - Optional C/Z Folder387
  - Finishing Transport Specifications387
