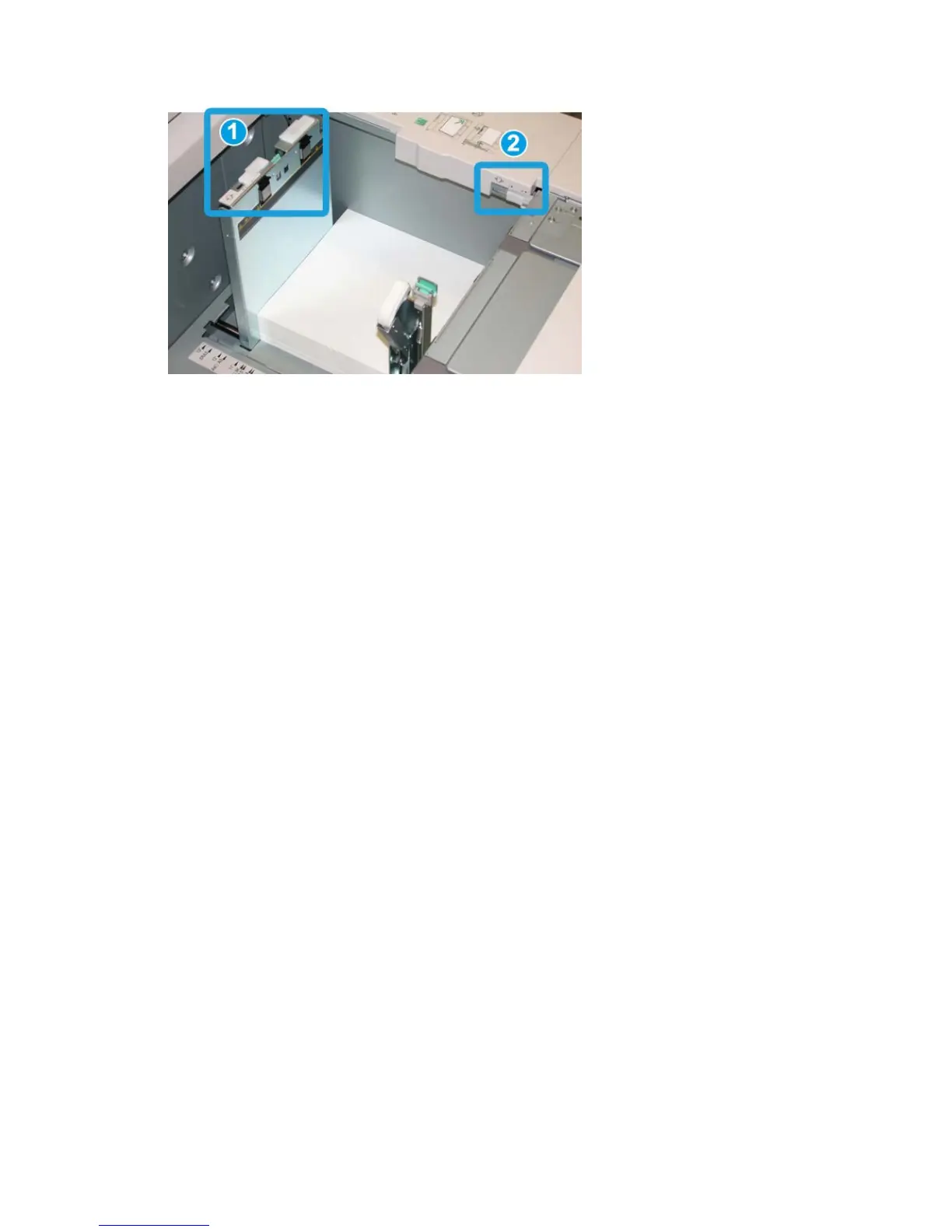

1. Rear skew adjustment lever
2. Right-side skew adjustment lever
• These levers should remain in their default position. The position of these levers
should be changed only when there is a skew problem when running a specific print
job and/or specific media type.
• Changing the skew adjustment levers from their default position may cause more
skew problems when running certain media types, such as coated, label, transparency,
and film.
Use the following procedure to set the skew adjustment levers.
1. Pull out the tray slowly until it stops.
2. Slide the rear skew adjustment lever to the right (as shown in the above picture).
3. Gently push in the tray until it comes to a stop.
4. From the Tray Properties window, enter the correct paper information, including size,
type, weight, and if necessary, paper curl and/or alignment option.
5. Select OK to save the information and close the Tray Properties window.
6. Run your print job.
• The paper is fed accurately without skew and the printed output is satisfactory;
you are finished.
• The paper is skewed and the printed output is unsatisfactory; proceed to the next
step.
7. Pull out the tray slowly until it stops.
8. Return the rear skew adjustment lever to its left, default position.
9. Slide the right-side skew adjustment lever toward the front of the paper tray.
10. Gently push in the tray until it comes to a stop.
11. From the Tray Properties window, enter the correct paper information, including size,
type, weight, and if necessary, paper curl and/or alignment option.
6-5
Xerox
®
Color 800/1000 Press
User Guide
Paper information
