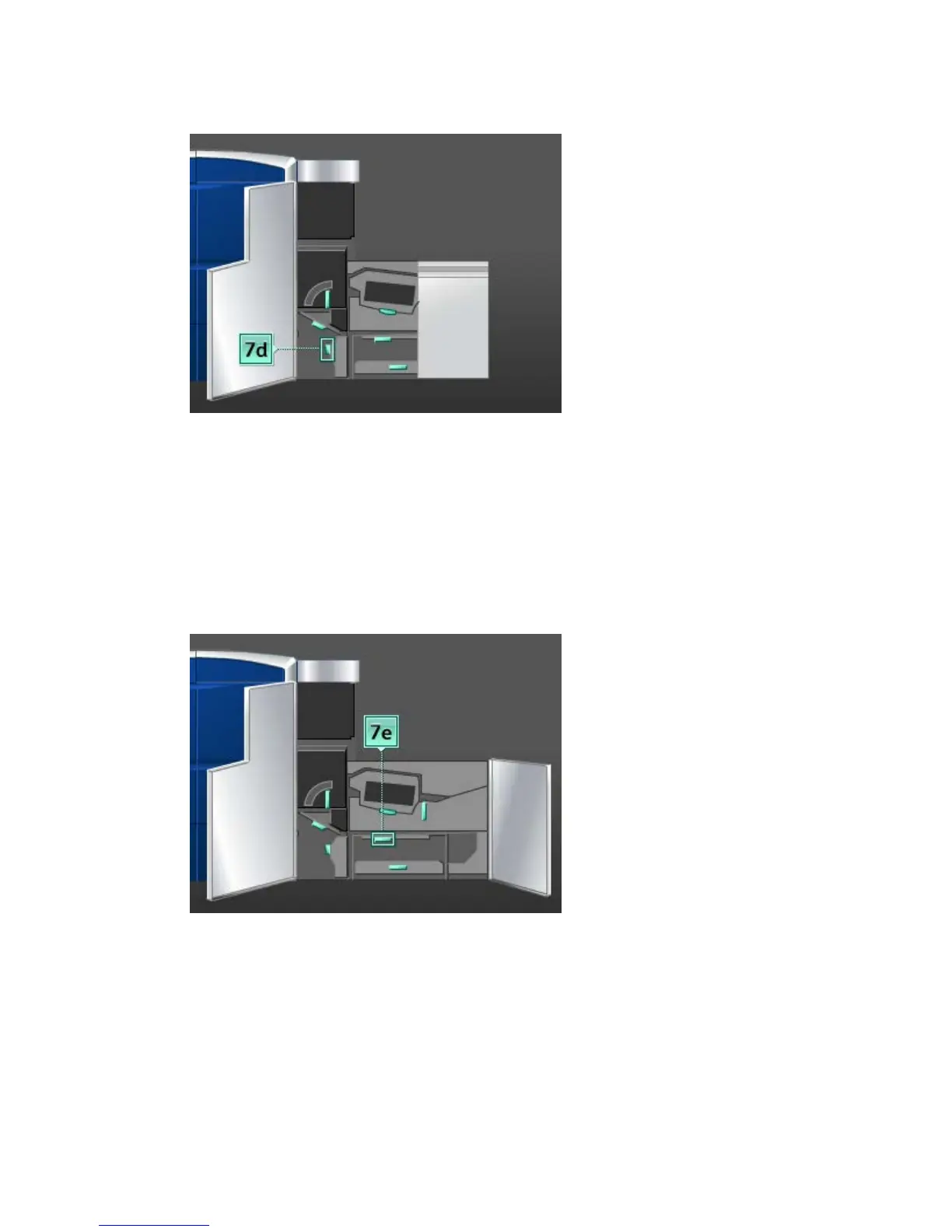

8. Grasp lever 7d and move it to the left.
9. Use a damp, water-moistened (not wet), lint-free cloth to clean the paper path only
in the green lever jam clearance areas as shown in the illustration.
a) Open each area and clean the surfaces of the green-handle areas.
b) Remove any residual moisture with a dry, lint-free cloth.
10. Return lever 7d to its original position.
11. Grasp lever 7e and move it downward.
12. Use a damp, water-moistened (not wet), lint-free cloth to clean the paper path only
in the green lever jam clearance areas as shown in the illustration.
a) Open each area and clean the surfaces of the green-handle areas.
b) Remove any residual moisture with a dry, lint-free cloth.
13. Return lever 7e to its original position.
9-15
Xerox
®
Color 800/1000 Press
User Guide
Maintenance
