8-6 Phaser 3300MFP Service Manual
Service Parts Disassembly
Maintenance Items and Consumables
Maintenance items include the ADF Pickup Roller, ADF Rubber Pad, Transfer
Roller, Fuser, Pick-Up Roller, and Tray Rubber Pad. Except for the Fuser, all
the Maintenance Items are customer-replaceable. The Print Cartridge is the
one Consumable item.
ADF Pickup Assembly (PL 13.0.4)

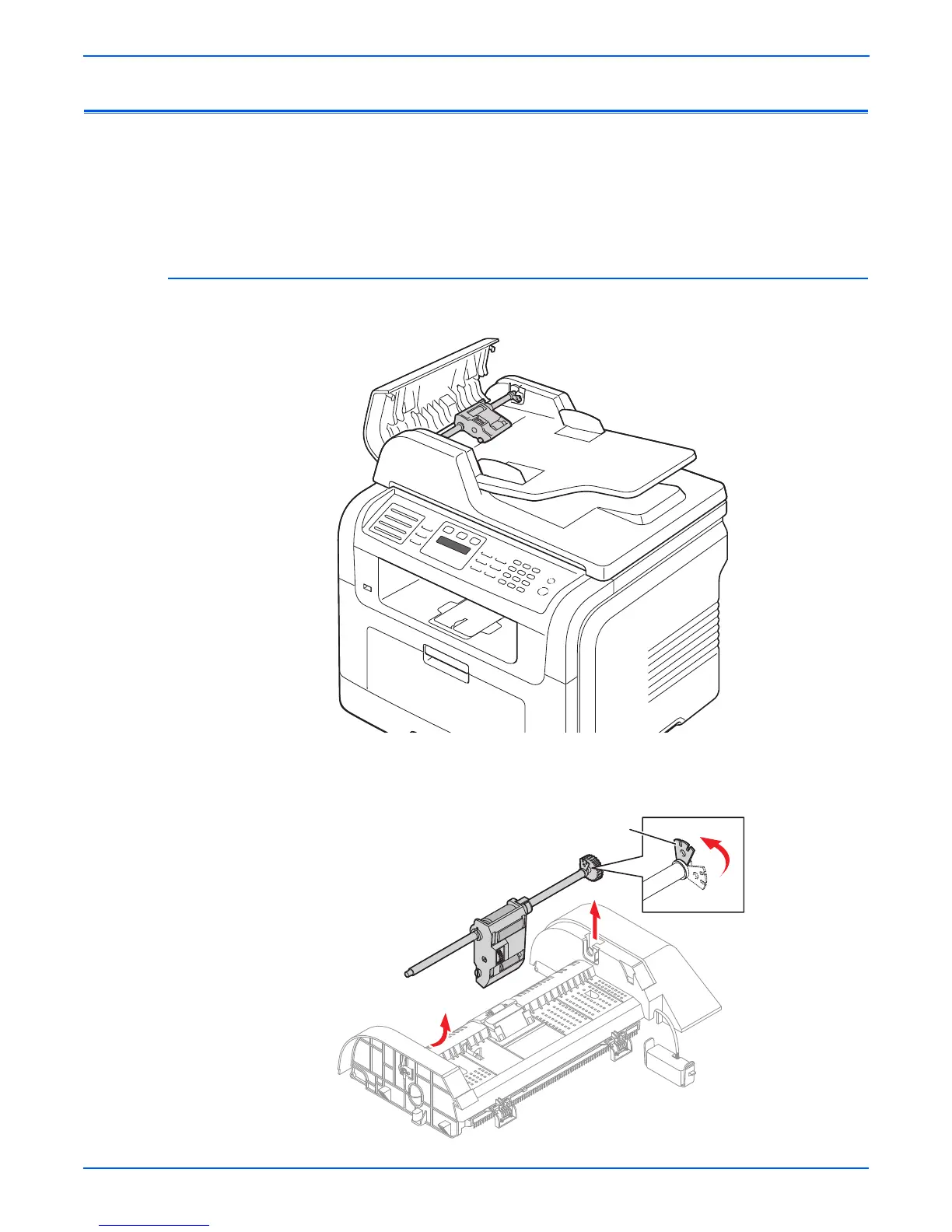

1. Open the ADF Cover, as shown below.
2. Lift the tab to release the bushing, and rotate it as shown below until it is
straight up and the bushing is free in the slot.
3. Lift the Pick Up Assembly out of the ADF housing.
