Phaser 3300MFP Service Manual 8-41
Service Parts Disassembly
Feed Roller Parts
Before you remove the Feed Roller Parts, you must remove:
■ Pick Up Roller Assembly (page 8-9)
■ Duplex Guide Housing (page 8-38)
■ Middle Cover Assembly (page 8-33)
■ MPF Housing (page 8-39)

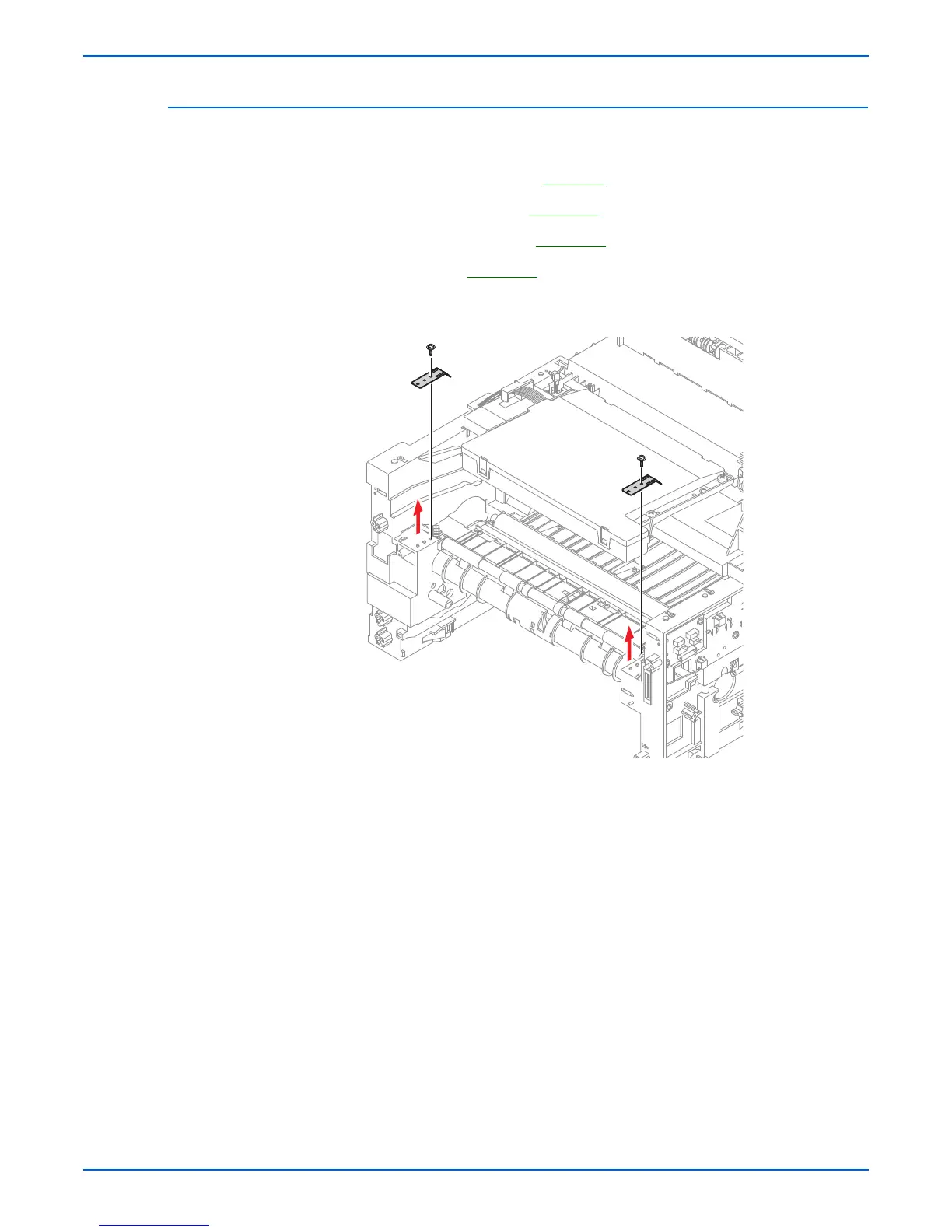

1. Remove the two screws securing the both side of the Plate Push Bushing
and then remove the Guides.
