Phaser 3300MFP Service Manual 8-77
Service Parts Disassembly
HVPS Housing
Before you remove the HVPS Housing, you must remove:
■ Duplex Drive Assembly (page 8-65)
■ Pick Up Roller Assembly (page 8-36)
■ Duplex Guide Housing (page 8-38 )

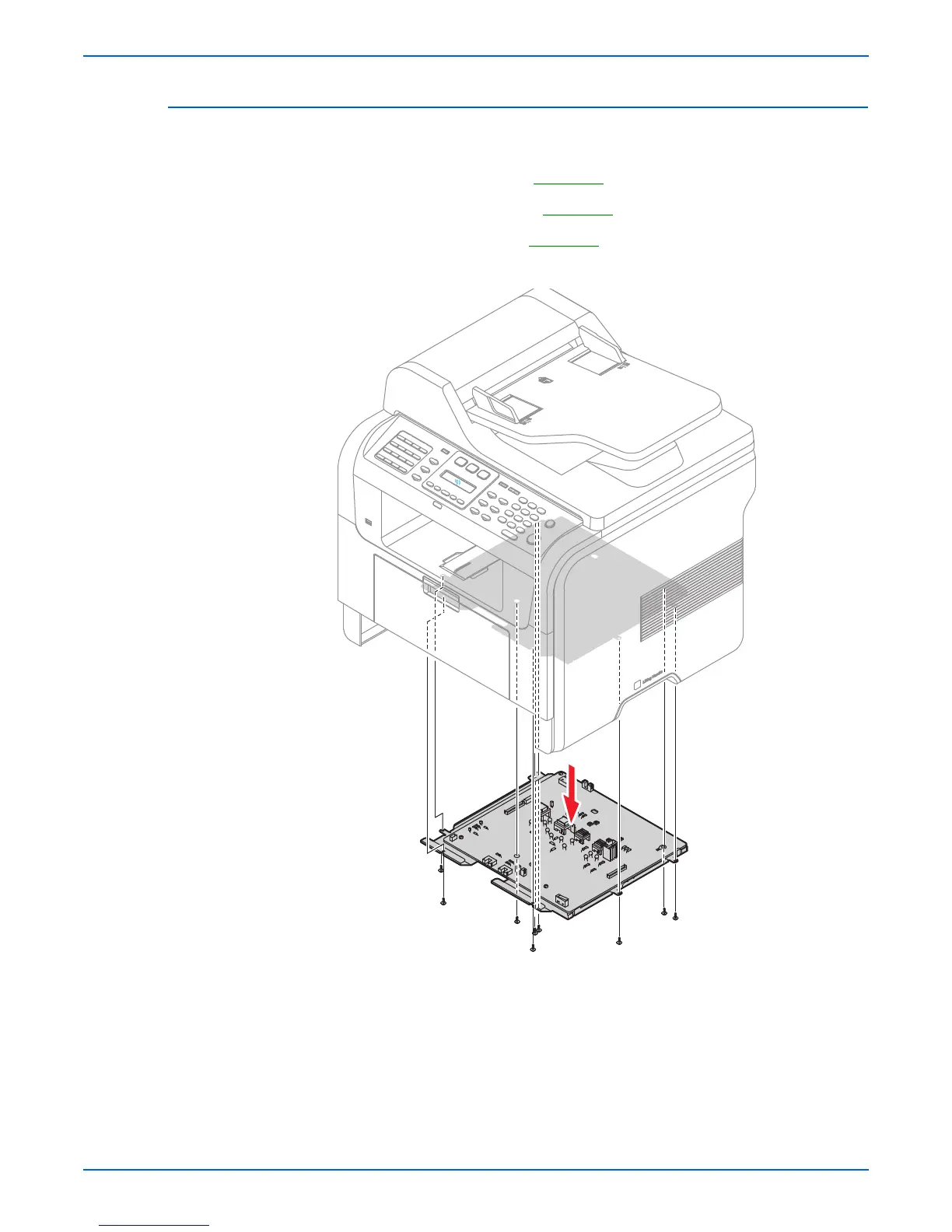

1. Remove the nine screws securing the HVPS Housing, as shown below.
