Xerox Phaser 3300 User Manual

8-66 Phaser 3300MFP Service Manual
Service Parts Disassembly
Fuser Drive Assembly
Before you remove the Fuser Drive Assembly, you must remove:
■ Right Side Cover (page 8-26)

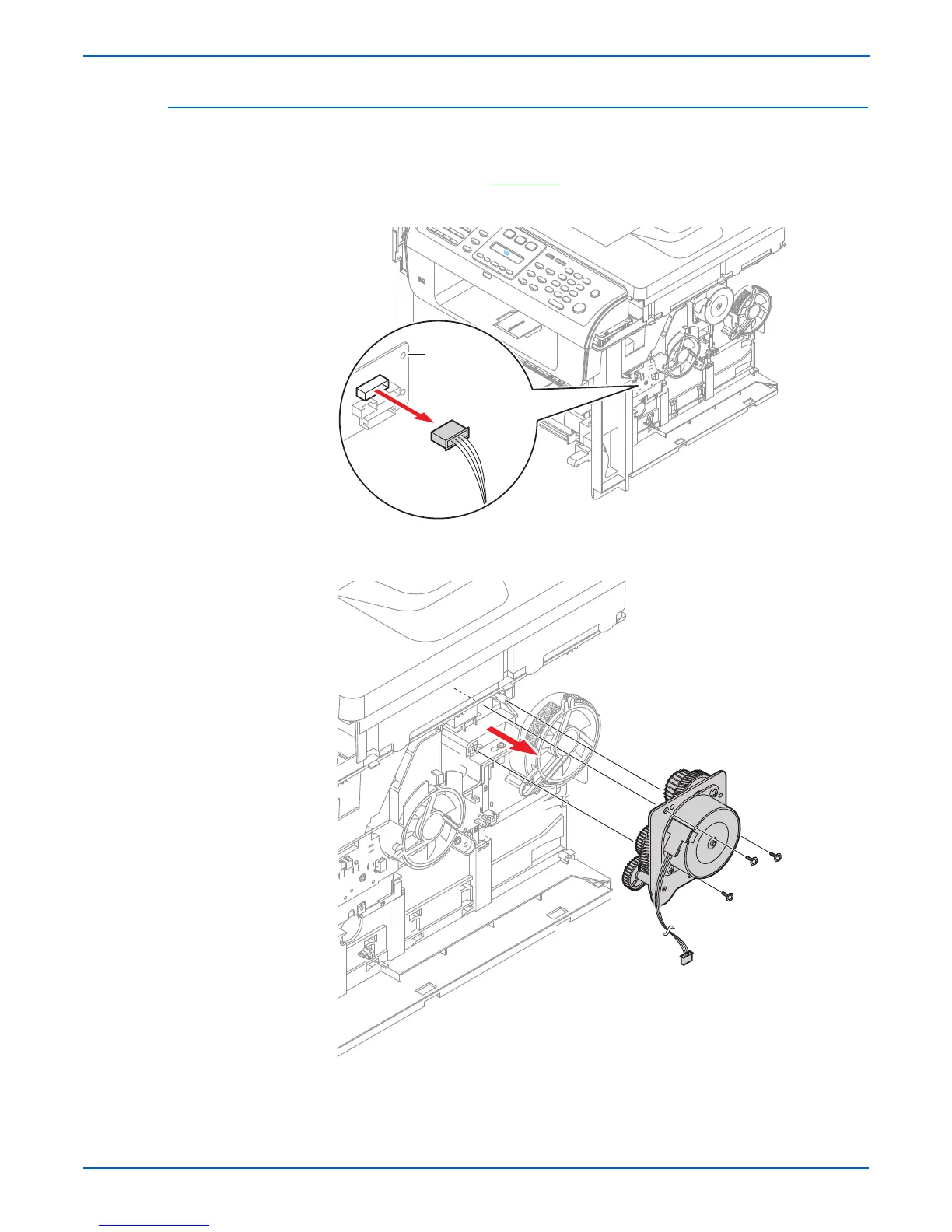

1. Unplug the cable from the connector on the step motor.
2. Remove the three screws securing the Fuser Drive Assembly and remove
it.
s3300mfp-115
Connection
PBA
Fuser Drive
s3300mfp-116
