Phaser 3300MFP Service Manual 8-67
Service Parts Disassembly

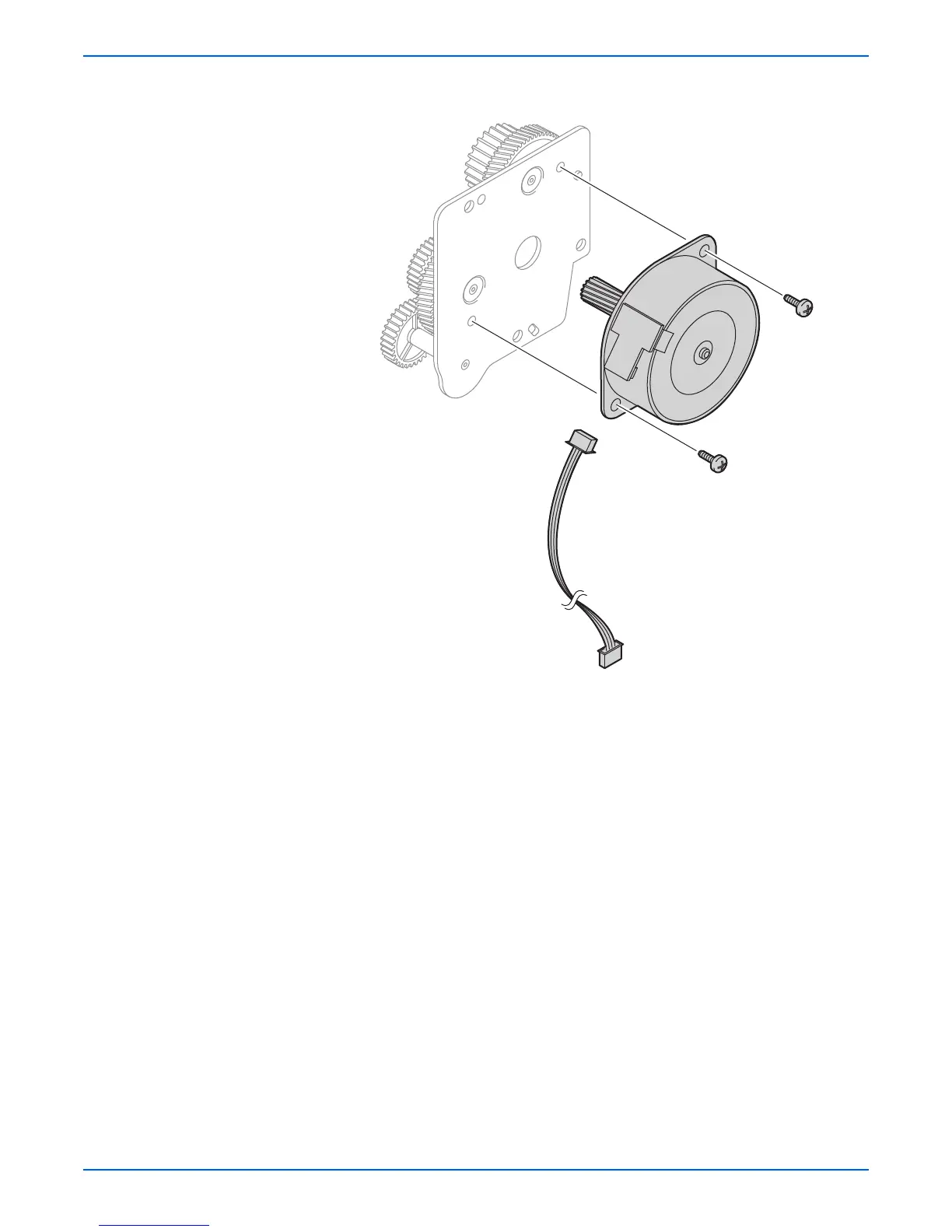

3. If necessary, remove the two screws securing the Step Motor and
remove it.
s3300mfp-117
