8-74 Phaser 3300MFP Service Manual
Service Parts Disassembly

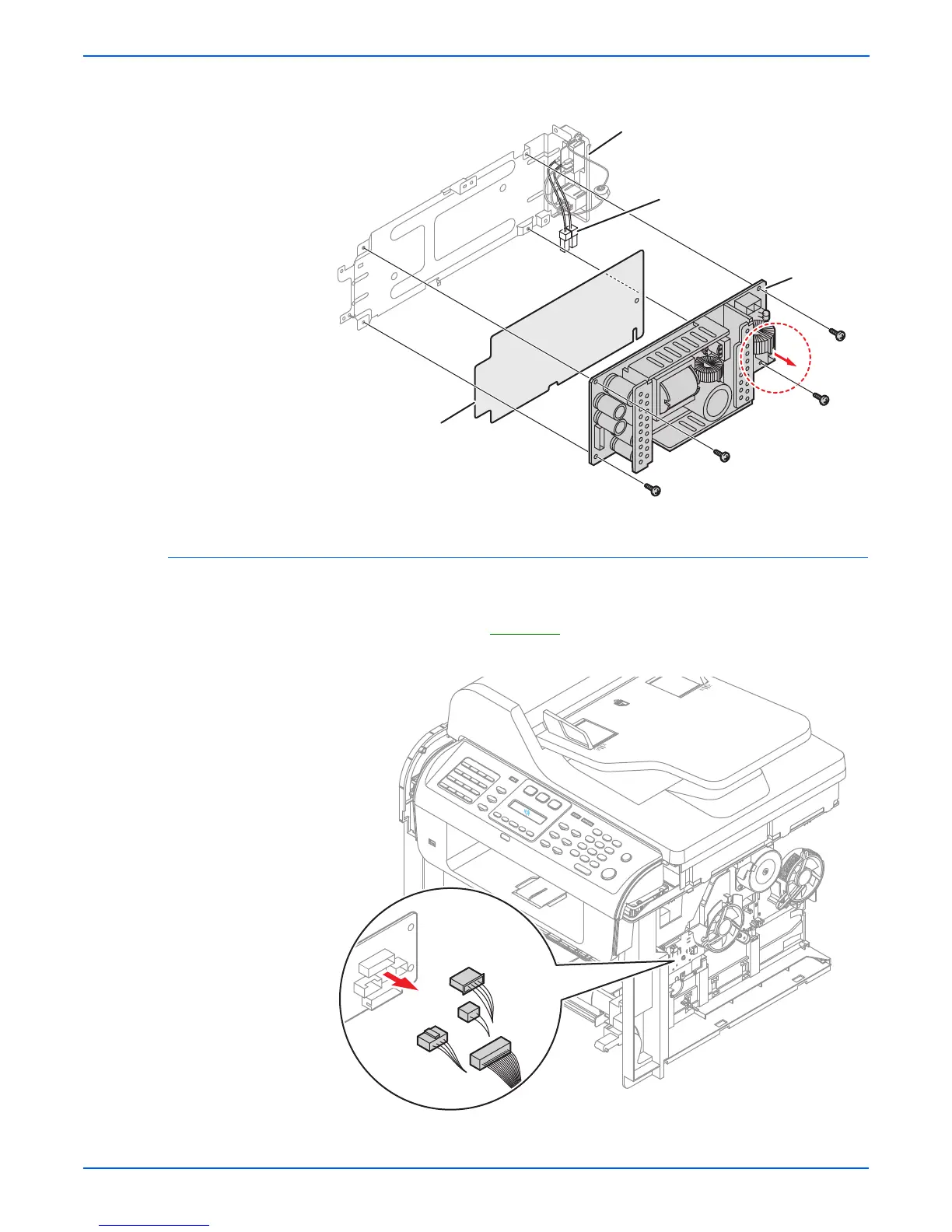

3. Unplug the connector (AC Inlet) and remove the four screws securing
SMPS and remove it.
Connection PBA
Before you remove the Connection PBA, you must remove:
■ Right Side Cover (page 8-26)
1. Unplug the all connectors.
s3300mfp-111
Insulator Sheet
SMPS Shield (With AC Inlet)
AC Inlet Connector
SMPS
To Next Page
