Phaser 3300MFP Service Manual 8-75
Service Parts Disassembly

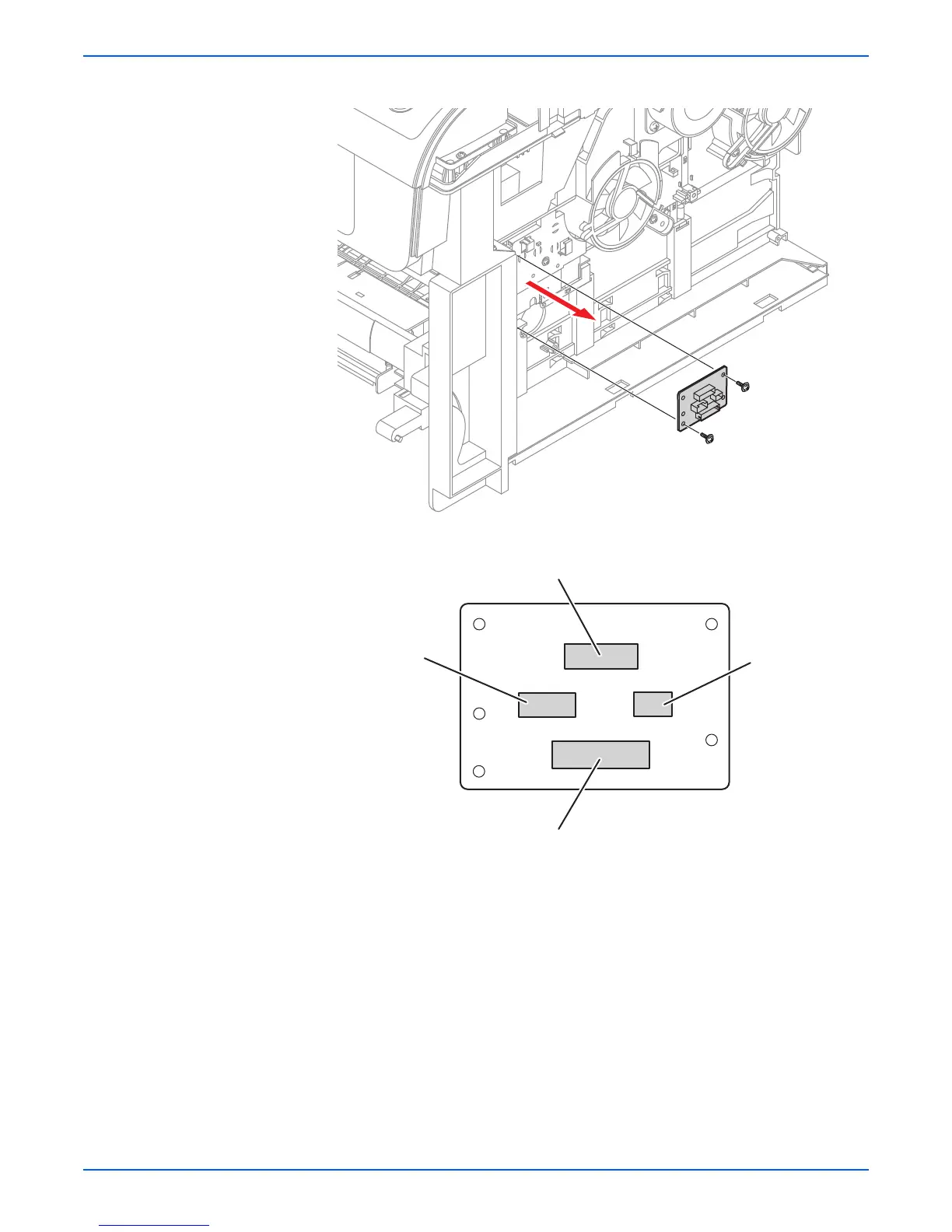

2. Remove the two screws securing the Connection PBA and remove it.
3. The connectors are located, as shown below.
s3300mfp-113
s3300mfp-114
HVPS
Main Fan
Fuser Exit Motor, Duplex Fan
Duplex Motor
