Phaser 3300MFP Service Manual 8-33
Service Parts Disassembly
Middle Cover Assembly
Before you remove the Middle Cover Assembly, you must remove:
■ Side Cover (Left, Right) (page 8-33)
■ Platen Assembly (page 8-52)
■ Shield Controller Assembly (page 8-68)

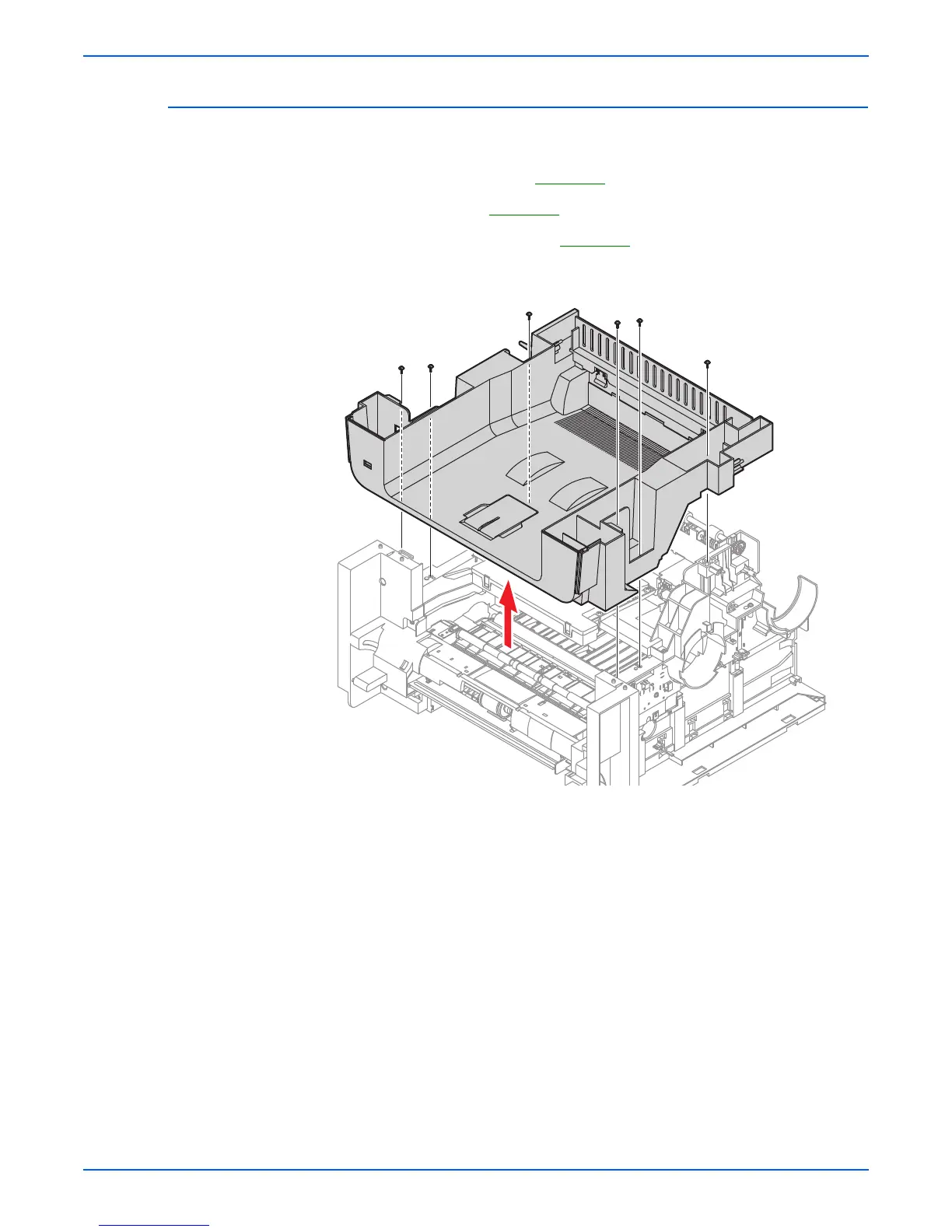

1. Remove the six screws securing the Middle Cover Assembly and remove
it.
2. If necessary, remove the two screws securing the USB Host PBA and
remove it.
