8-8 Phaser 3300MFP Service Manual
Service Parts Disassembly
Transfer Roller

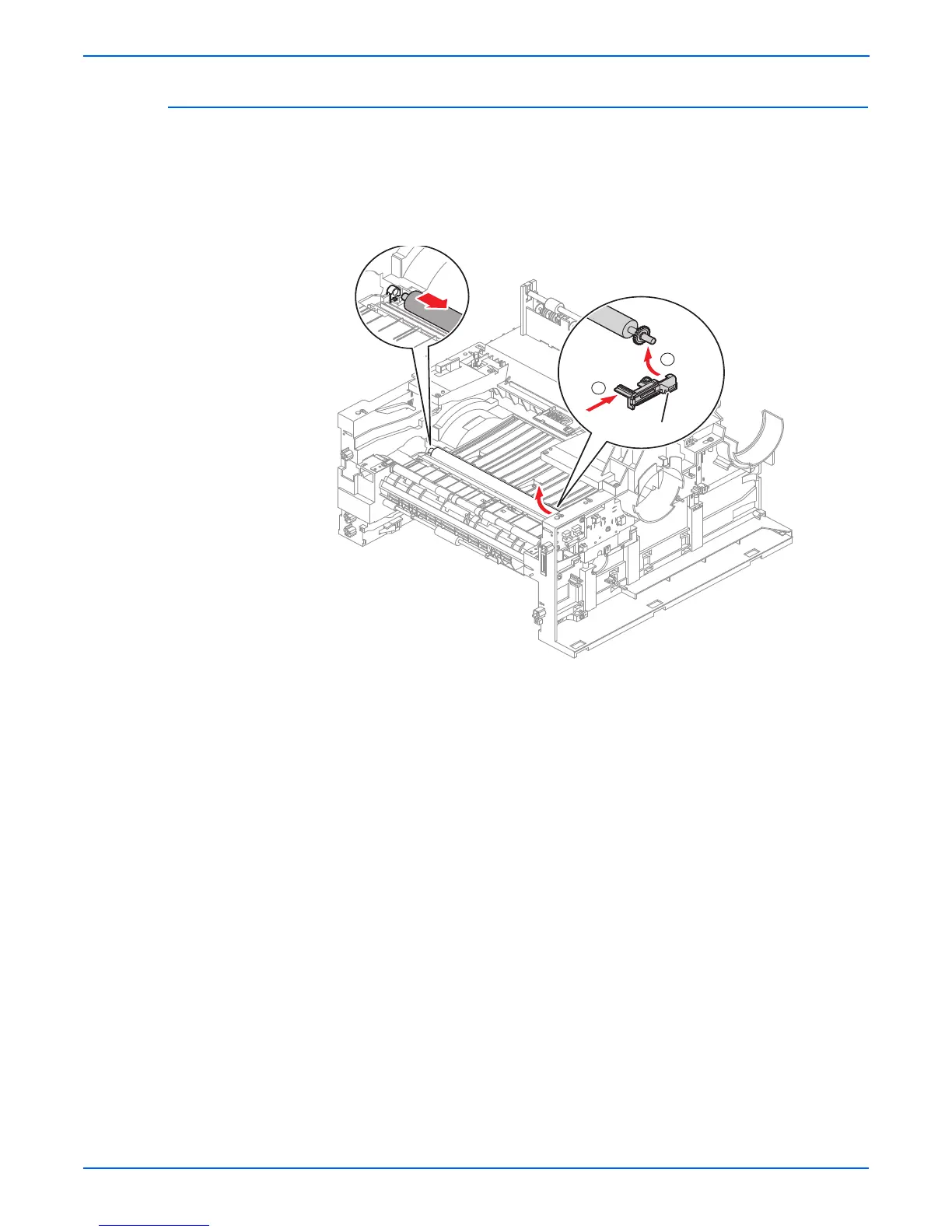

To remove the Transfer Roller:
1. Push the TR Holder toward the rear of the machine to release the right
end of the roller shaft.
2. Slide the roller to the right just enough to release the left end of the roller
shaft; remove the roller from the machine.
Avoid touching the rubber part of the Transfer Roller to prevent
contamination of the surface. Hold the ends of the Transfer Roller
shaft when replacing the roller.
