Xerox Phaser 3300 - Parts List 8.0 Main Drive Assembly

9-18 Phaser 3300MFP Service Manual
Parts List

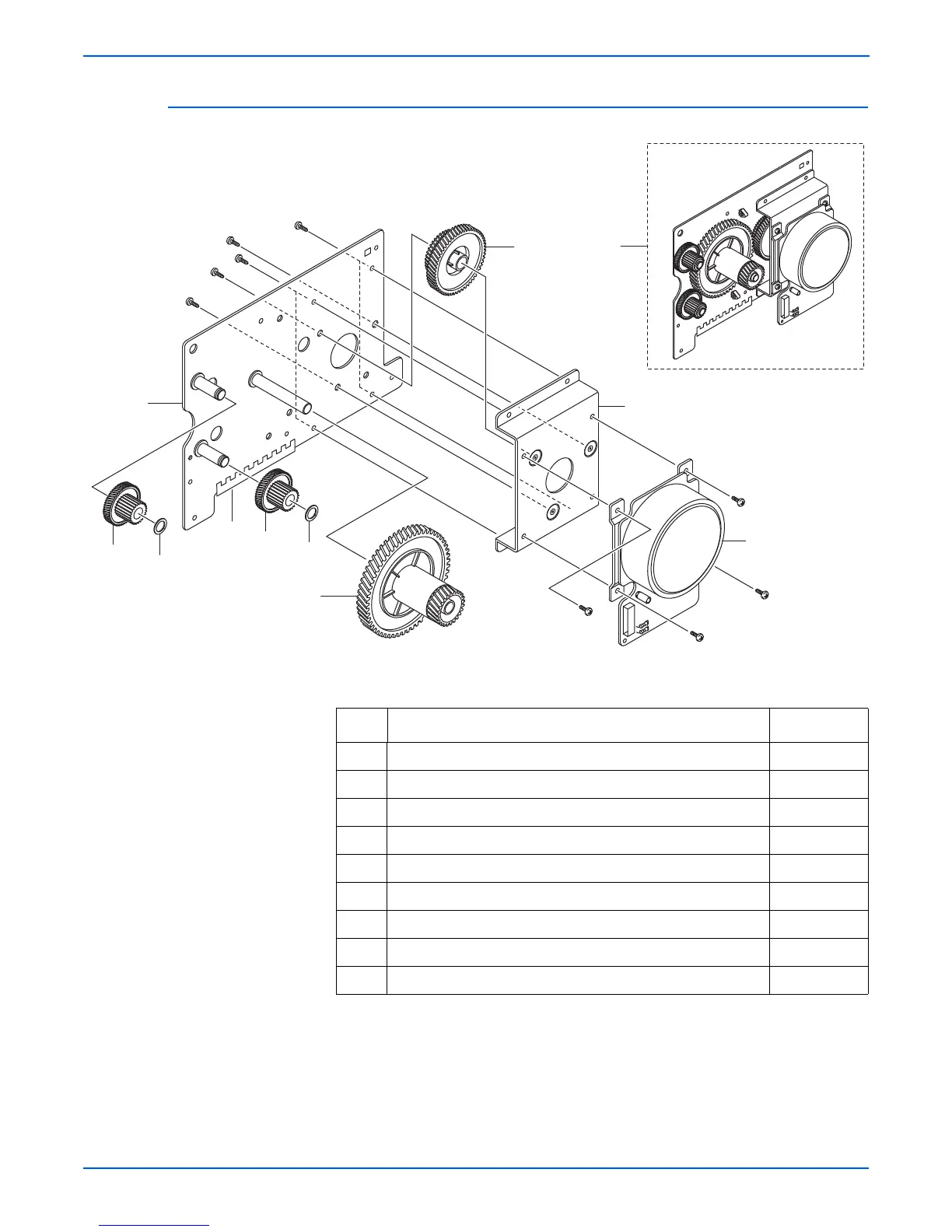

Parts List 8.0 Main Drive Assembly
Parts List 8.0 Main Drive Assembly
ID No. Name/Description
Part Number
0 ELA UNIT-MAIN DRIVE 007N01561
1 BRACKET-P-GEAR MAIN —
2 GEAR-OPC RDCN 93/61 —
3 BRACKET-P-MOTOR MAIN —
4 MOTOR DC-BLDC MAIN —
5 GEAR-OPC DRV 113/33 —
6 GEAR-FEED RDCN 55/18 —
7 WASHER-PLAIN —
8 GASKET —
0
1
2
3
4
5
6
8
7
6
7
s3300mfp-083
