Phaser 3300MFP Service Manual 8-9
Service Parts Disassembly
Pick Up Roller (PL3.0.3-9)

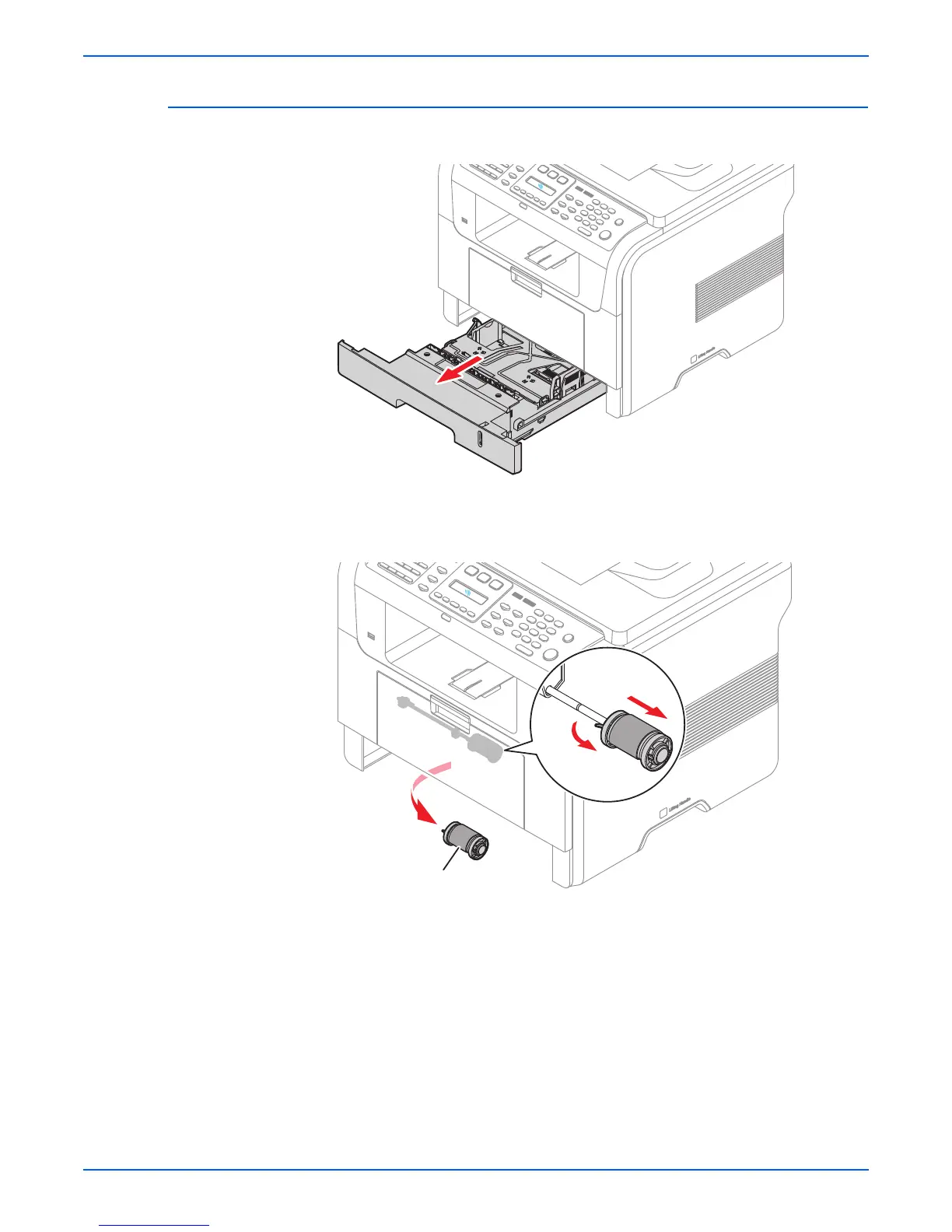

1. Take out the Cassette.
2. To remove the Pick Up Roller Assembly, first lift the notch attached to the
Pick Up Roller Assembly from the Shaft, then slide the Pick Up Roller
Assembly from left to right and it will be released completely, as shown
below.
s3300mfp-121
Pick Up Roller
