8-68 Phaser 3300MFP Service Manual
Service Parts Disassembly
Electrical
Control Board Shield Assembly
The Control Board Shield assembly consists of the Control Board, Fax/
Modem board, and speaker, and the sheet-metal shield plate on which those
parts are mounted. The individual parts can be removed without removing the
entire assembly.
Before you remove the Control Board Shield Assembly, you must remove:
■ Left Side Cover (page 8-26)

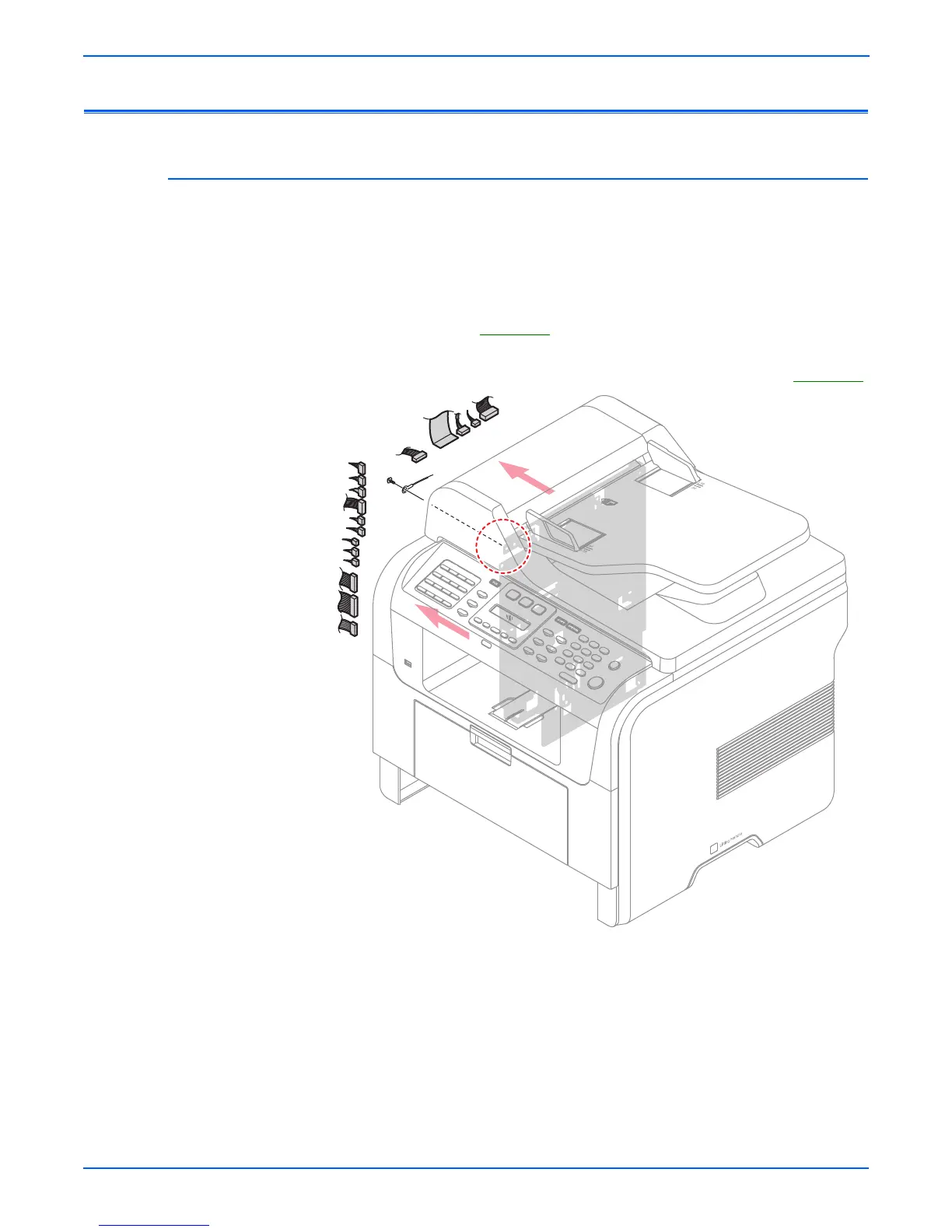

1. Unplug the all connectors and remove the one screw securing the Ground
Cable. Refer to the diagram in the Control Board procedure on page 8-70
.
s3300mfp-062

Xerox Phaser 3300 Specifications

General

Print Technology	Laser
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Automatic Document Feeder	50 sheets
Functions	Print, Copy, Scan, Fax
Copy Resolution	600 x 600 dpi
Connectivity	USB 2.0
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS
