Xerox Phaser 3300 - Page 221

Phaser 3300MFP Service Manual 8-69
Service Parts Disassembly

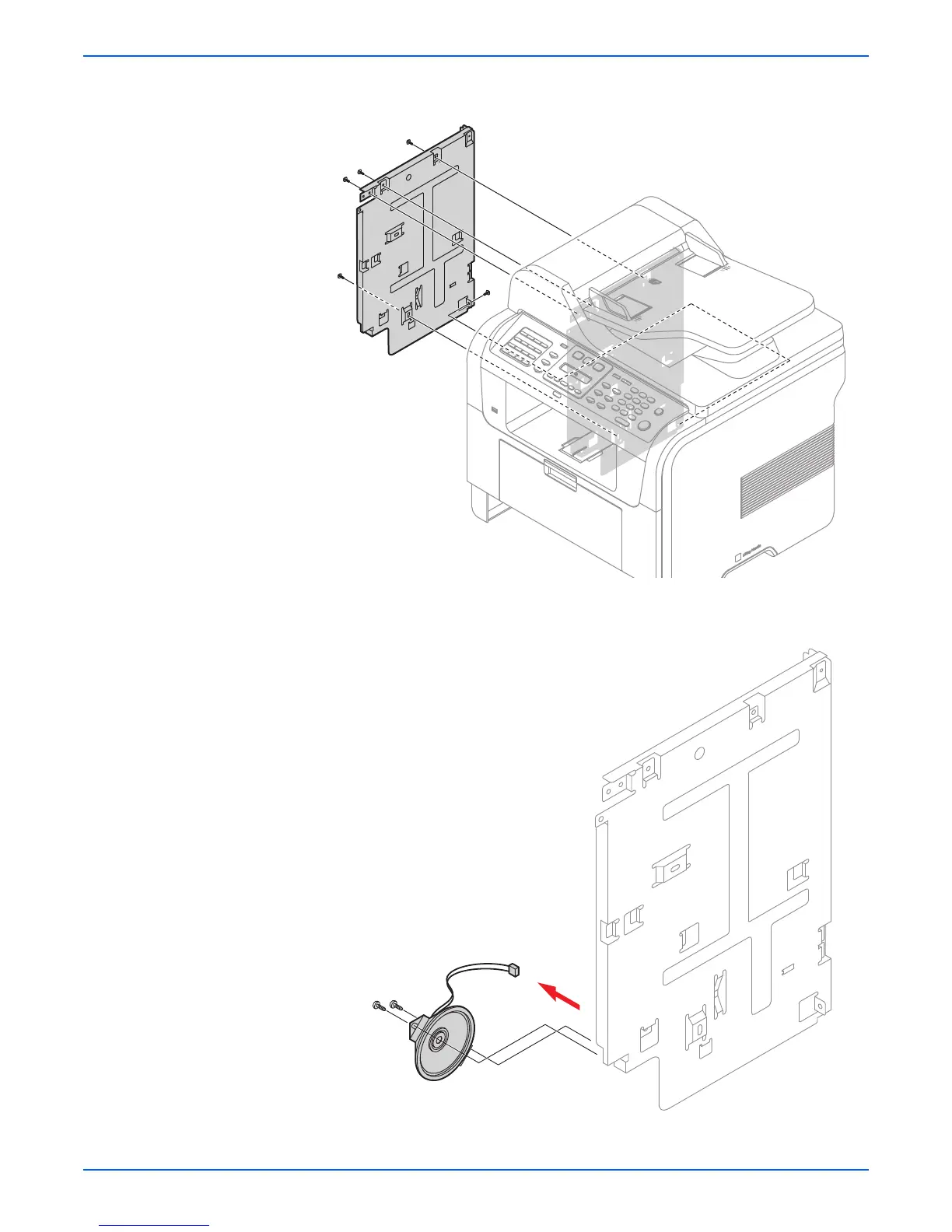

2. Remove the five screws securing the Control Board Shield Assembly and
remove it.
3. To remove the speaker, remove the two screws securing the Speaker to
the shield and unplug the connector from the Modem PBA; remove the
speaker.
s3300mfp-104
