Phaser 3300MFP Service Manual 8-45
Service Parts Disassembly
Pick Up Gear Assembly & Solenoids
Before you remove the Pick Up Gear Assembly & Solenoids, you must
remove:
■ Duplex Guide Housing (page 8-38)
■ Feed Bracket Unit (page 8-41)

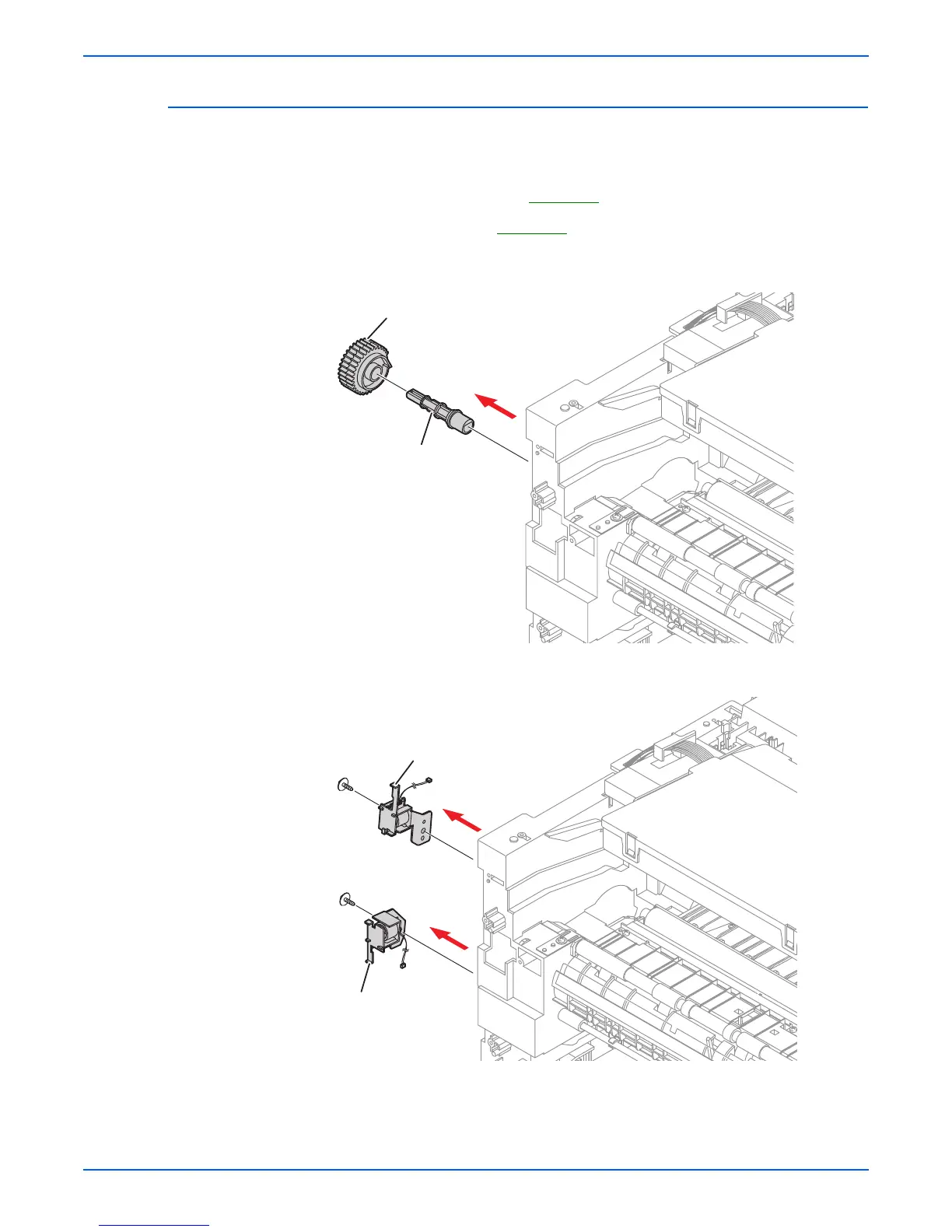

1. Release the Pick Up Gear Assembly and Pick Up Gear Shaft, as shown
below.
2. Remove the two screws securing the Manual Solenoid and Feed Solenoid
and then remove the Solenoids, as shown below.
Pick Up Gear
Pick Up Gear Shaft
Feed Solenoid
Manual Feed Solenoid
