8-44 Phaser 3300MFP Service Manual
Service Parts Disassembly

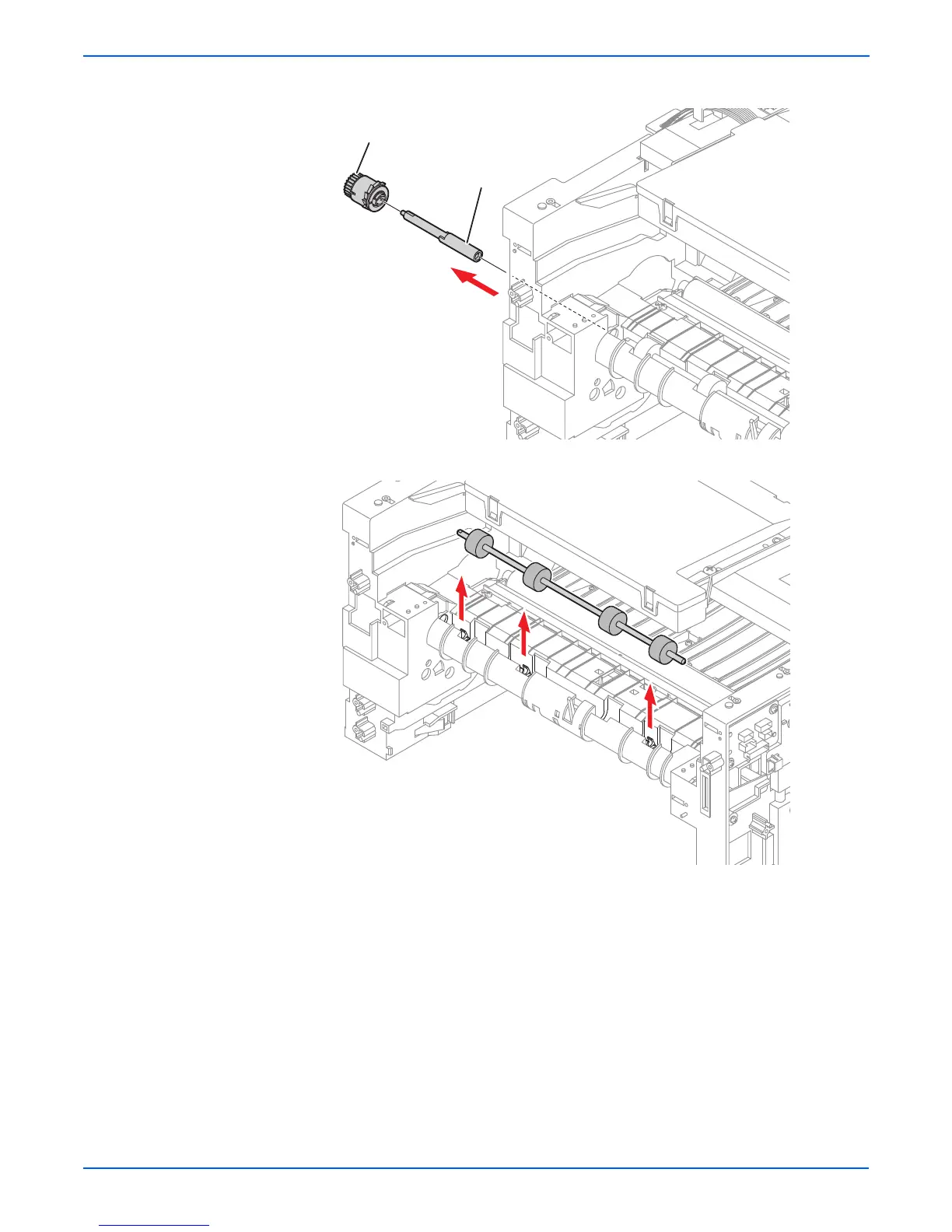

6. Remove the Clutch Unit, as shown below.
7. Pull up the Feed1 Roller from the Bushing, as shown below.
Note
Do not grab the rubber part of the Feed1 Roller, it may cause a
malfunction due to contamination.
Feed Shaft
Feed1 Gear
