Phaser 3300MFP Service Manual 8-43
Service Parts Disassembly

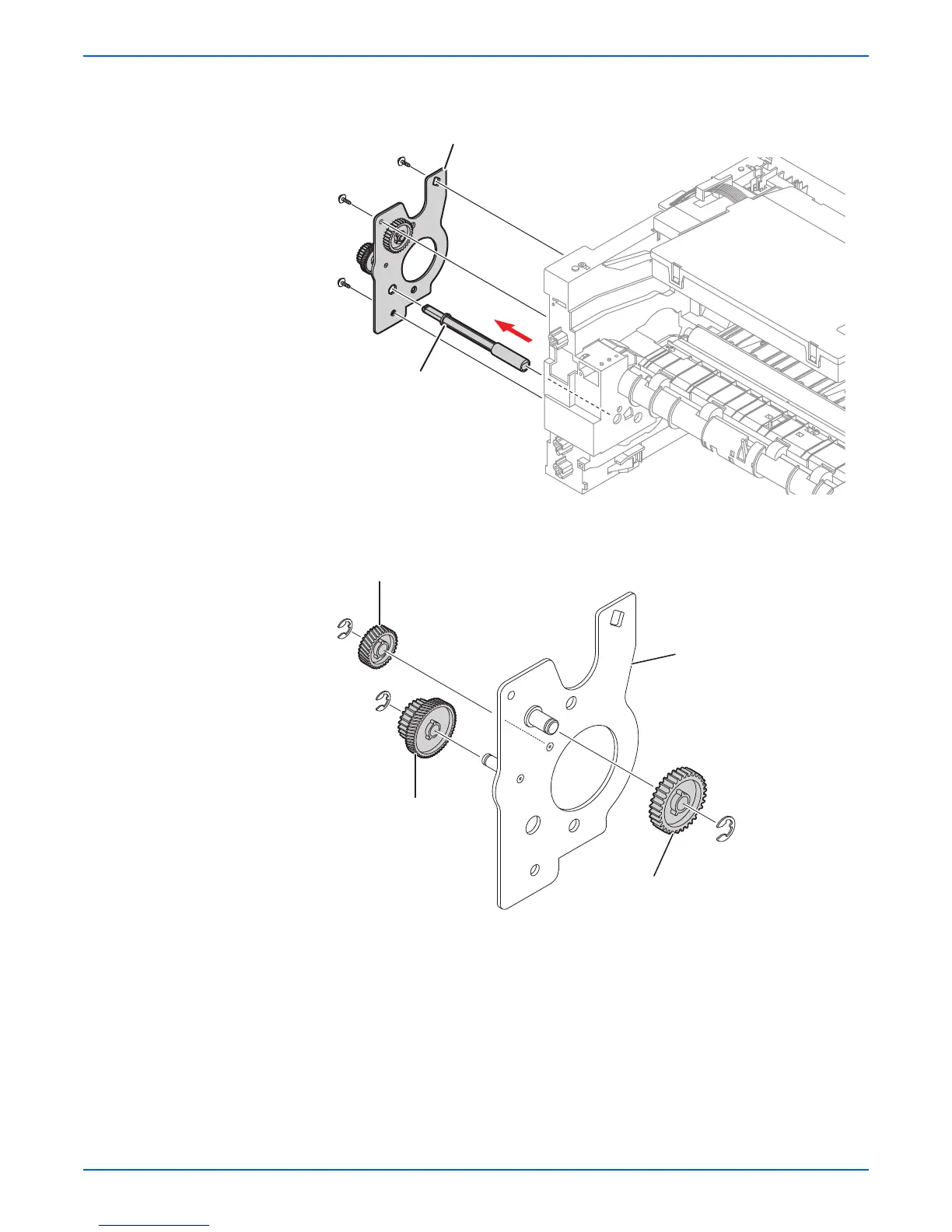

4. Remove the three screws securing the Feed Bracket Unit and then
remove the Feed Bracket Unit and Feed2 Shaft.
5. If necessary, release the three E-Rings securing the Gears (T2 Idle,
Retard, Idle) and then remove the Gears from the Feed Bracket, as
shown below.
Note
Be aware of the E-Rings to ensure they are not lost.
Feed2 Shaft
Feed Bracket
s3300mfp-138
T2 Idle Gear
Retard Gear
Idle Gear
Bracket
