8-72 Phaser 3300MFP Service Manual
Service Parts Disassembly
Fax/Modem Board

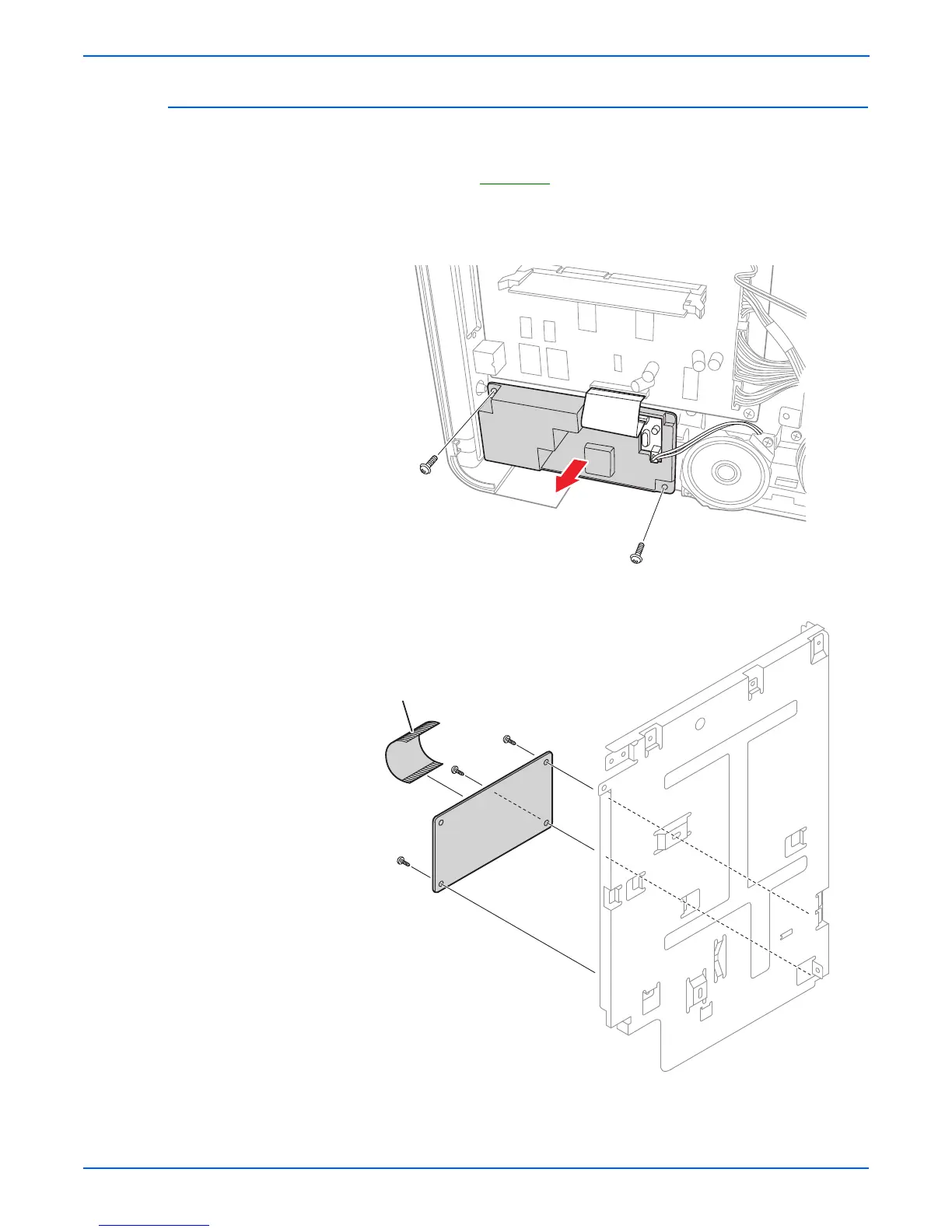

Before you remove the Fax/Modem Board, you must remove:
■ Left Side Cover (page 8-26)
1. Unplug the Ribbon Cable and Speaker from the Fax/Modem board.
2. Remove the two machine screws (upper-left and lower-right) holding the
Fax/Modem board cover and remove the cover.
3. Remove the remaining machine screw (lower-left) securing the board to
the shield and remove the Fax/Modem board.
s3300mfp-207
s3300mfp-103
Ribbon Cable
