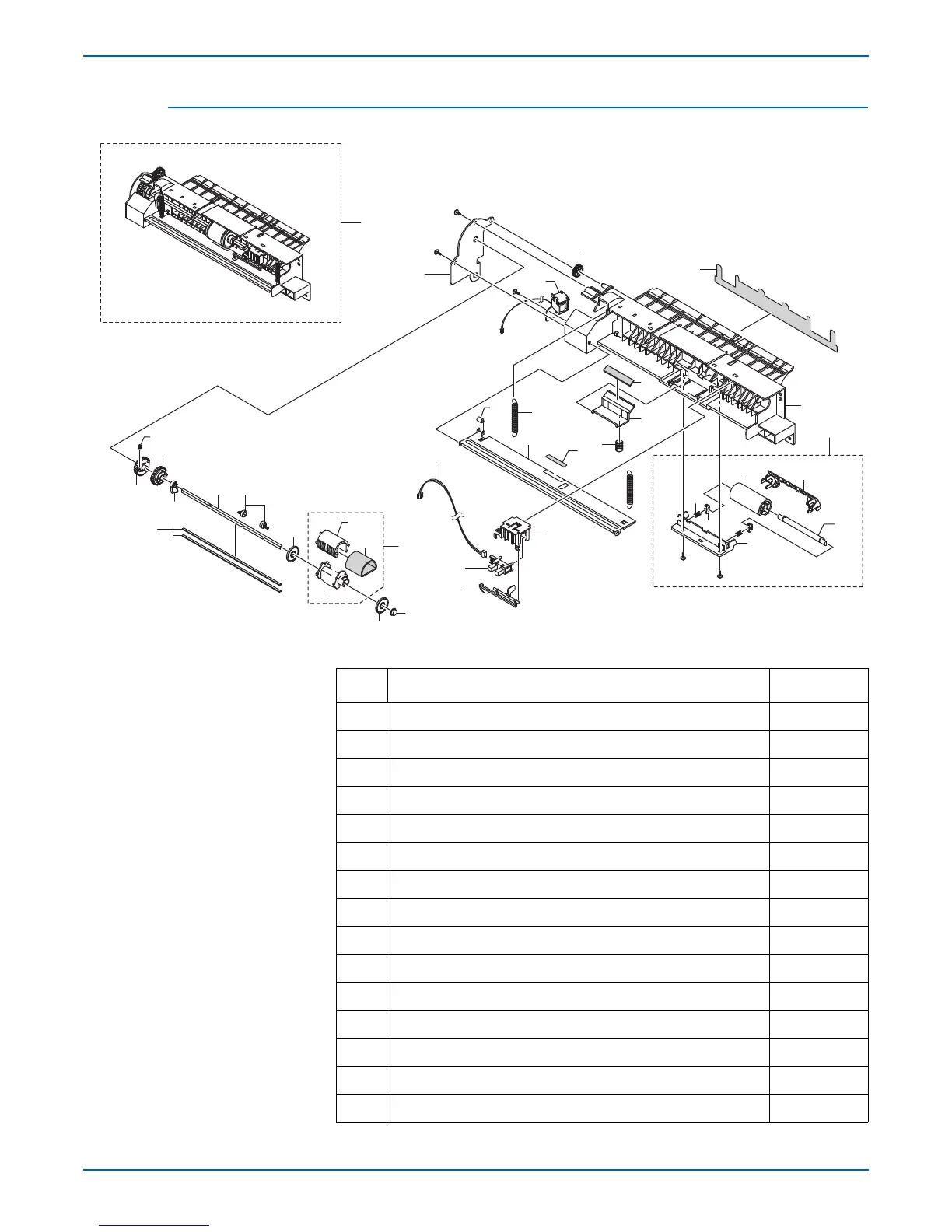

Parts List 9.0 MP Assembly
Parts List 9.0 MP Assembly
ID No. Name/Description Part Number
0 ELA HOU-MPF 002N02627
1 FRAME-M_MP —
2 MEA-IDLE FEED —
2-1 HOLDER-M_IDLE FEED —
2-2 SPRING ETC-EXIT LOWER IDLE —
2-3 HOLDER-M_SHAFT IDLE —
2-4 ROLLER-IDLE FEED —
2-5 SHAFT-IDLE FEED —
2-6 COVER-M_IDLE FEED —
3 SHEET-GUIDE MP —
4 GEAR-IDLE 23 —
5 SOLENOID-MP 121N01075
6 HOLDER-M-PAD_MP —
7 RPR-FRICTION PAD 019N00742
8 SPRING ETC-EXIT ROLL FD —
0
1
2
2-1
2-2
2-3
2-4
2-5
2-6
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17-1
17-2
17-3
18
19
20
21
22
23
24
25
26
24
27
