8-78 Phaser 3300MFP Service Manual
Service Parts Disassembly

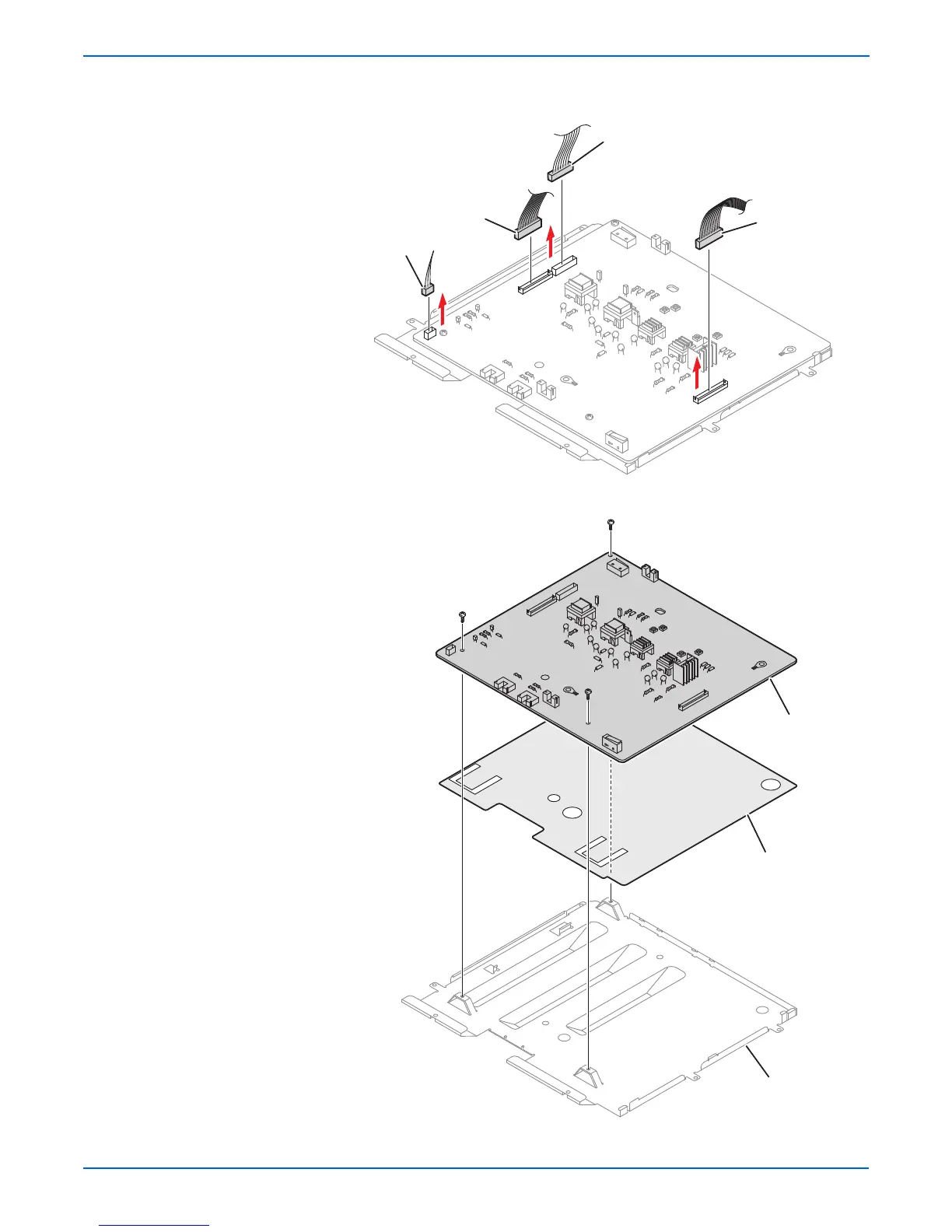

2.Unplug the connector for the Connection PBA and SMPS first. Unplug the
other connections.
3. If necessary, remove the three screws securing the HVPS and remove it.
s3300mfp-127
Duplex Motor
SMPS &
Connection
Board
Engine
Duplex
Guide
Housing
Insulator Sheet
Shield
HVPS
s3300mfp-128
