8-60 Phaser 3300MFP Service Manual
Service Parts Disassembly
Reassembling CCDM

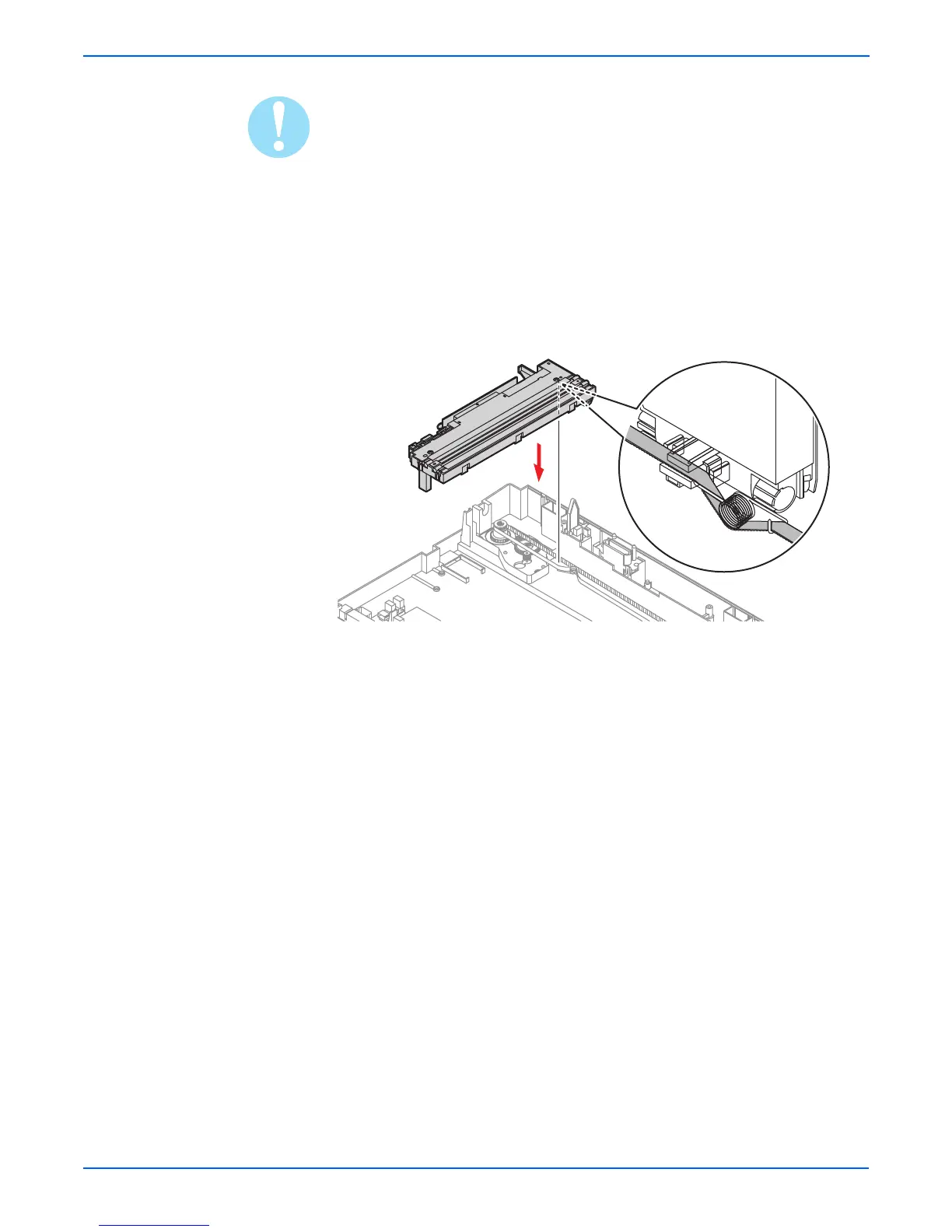

■ When refitting the Scanner Belt and Belt Spring take care to relocate the
tension spring as close to the right side of the CCDM as is possible, as
shown below.
■ When refitting the Scan Upper Cover take care to ensure that the Cover
Open Switch is not trapped.
s3300mfp-031
