Xerox WorkCentre 3345 Service Manual

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-4

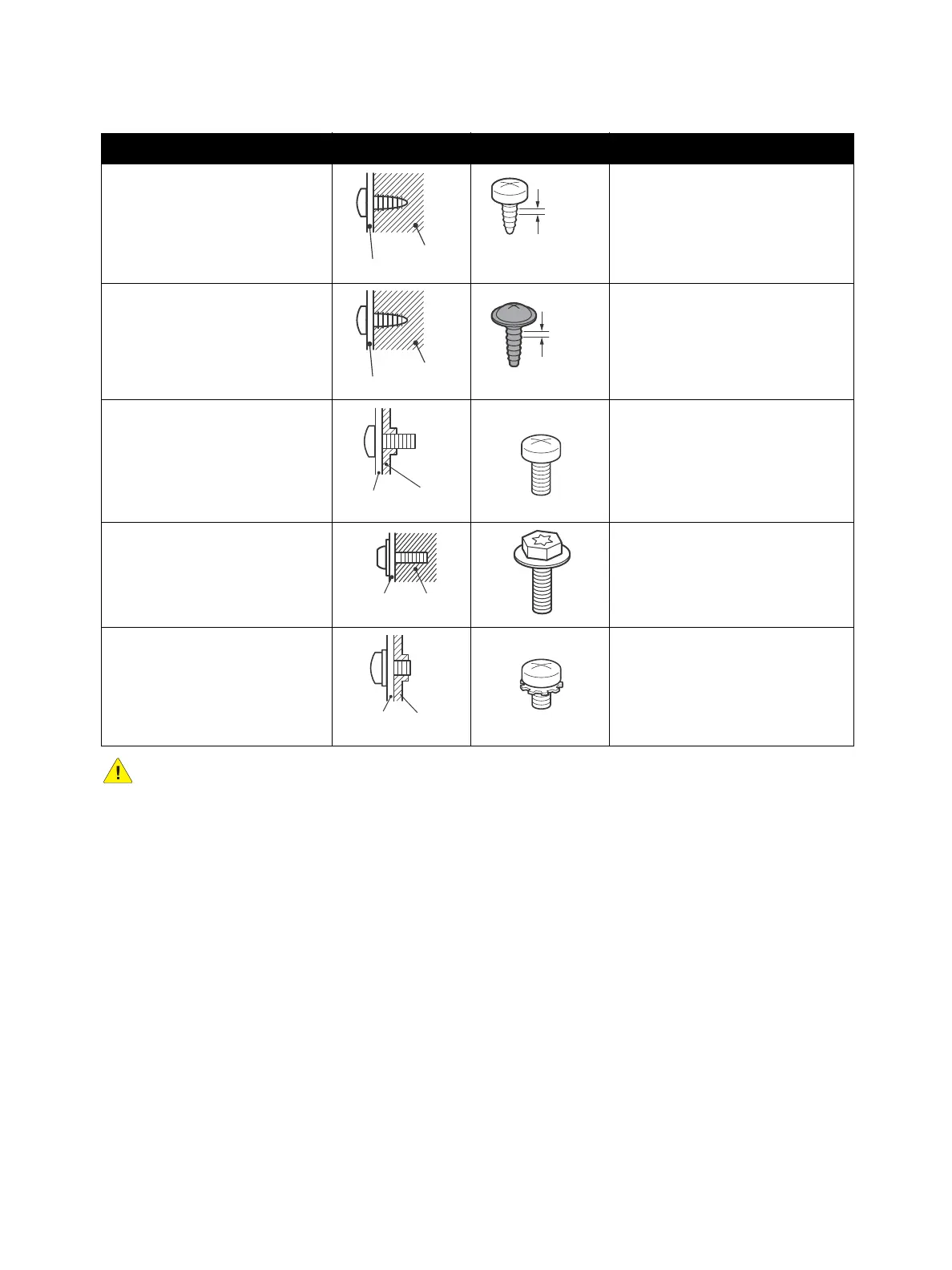

Screw Types Used in this Product
CAUTION: Use care when installing self-tapping screws in plastic. To properly start the screw in
plastic, turn the screw counter-clockwise in the hole until you feel the screw engage the threads,
then tighten as usual. Improperly aligning or over tightening the screw can result in damage to
previously tapped threads. Always use the correct type and size screw. Using the wrong screw can
damage tapped holes. Do not use excessive force to remove or install either a screw or a printer
part.
Type Application Shape Characteristics
Self-tapping, plastic 1. Silver colored.
2. Screw thread is coarse
compared to metal screw.
3. Screw tip is thin.
Self-tapping, plastic, with
flange
1. Silver or black colored.
2. Screw thread is coarse
compared to metal screw.
3. Screw tip is thin.
Sheet Metal, silver 1. Silver colored.
2. Diameter is uniform.
Self-tapping,
hex-head,
plastic, with
flange
1. Silver colored.
2. Screw thread is coarse
compared to metal screw.
3. Screw tip is thin.
Sheet Metal, silver with lock
washer
1. Silver colored.
2. Includes a toothed washer.
3. Diameter is uniform.
4. Used for grounding terminals.
Parts etc.
Plastic
Coarse
Parts etc.
Plastic
Coarse
Parts etc.
Sheet
Metal
Plastic
Parts etc
Parts etc.
Sheet
Metal

Xerox WorkCentre 3345 Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Print Resolution	Up to 600 x 600 dpi
Automatic Document Feeder	50 sheets
Duplex Printing	Yes
Monthly Duty Cycle	Up to 80, 000 pages
First Page Out Time (Black)	As fast as 6.5 seconds
Processor	600 MHz
Paper Input (Standard)	250 sheets
Paper Output	150 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Copy Resolution	Up to 600 x 600 dpi
Connectivity	USB, Ethernet, Wi-Fi
Functions	Copy, Print, Scan, Fax, Email
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plugin for Android, Mopria
Media Sizes Supported	Letter, Legal, A4, A5, B5, A6
Fax Transmission Speed	3 seconds per page
Maximum Paper Size	216 x 356 mm
Copy Speed (Black)	Up to 42 cpm
