Xerox WorkCentre 3345

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-19

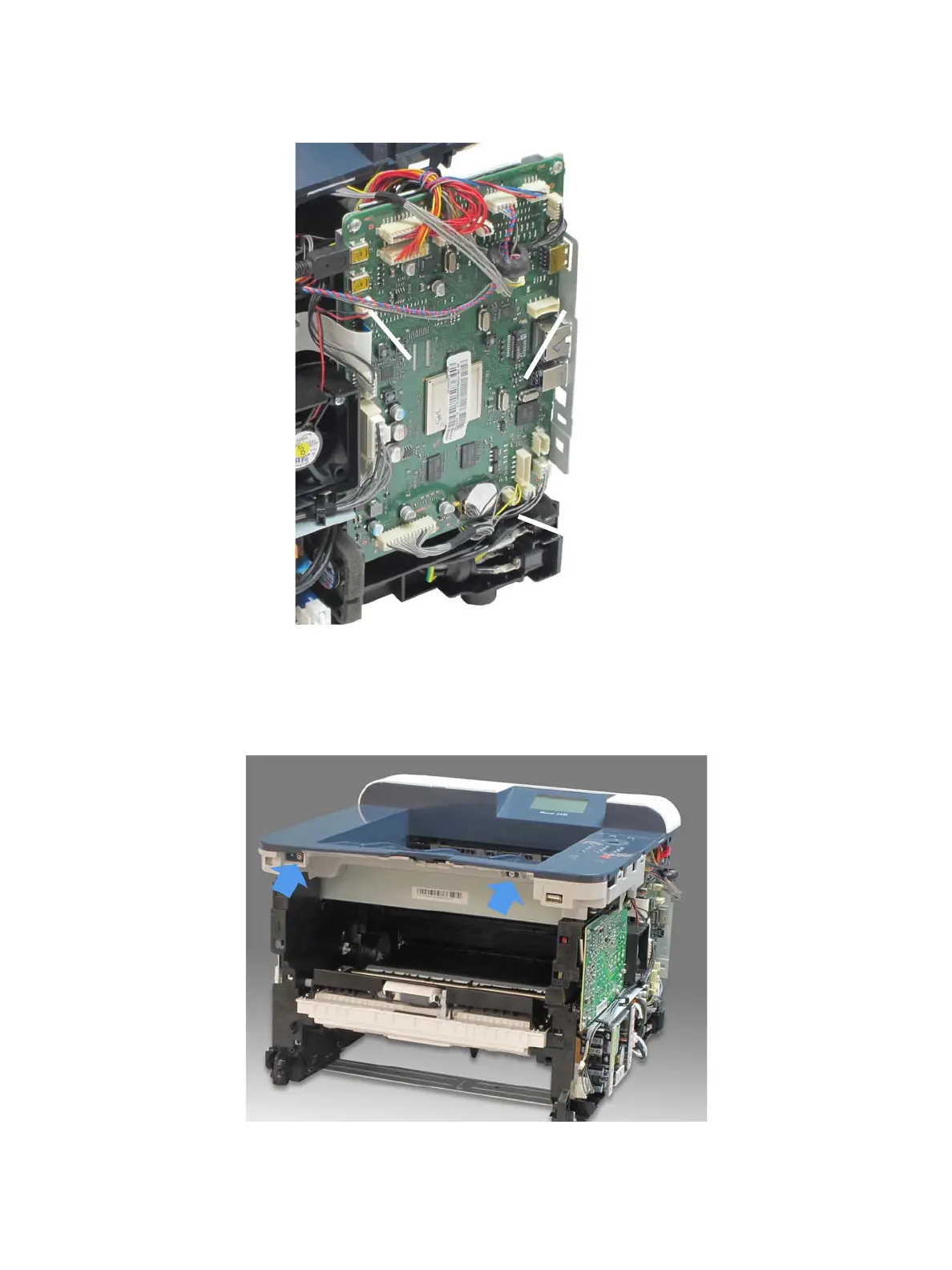

8. Disconnect cables (2) CN 17 for the Operator Control Panel and CN 37 for the Card Reader.
9. Remove screws (2) from the front.
CN 35
CN 37
CN 17
