Xerox WorkCentre 3345

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-31

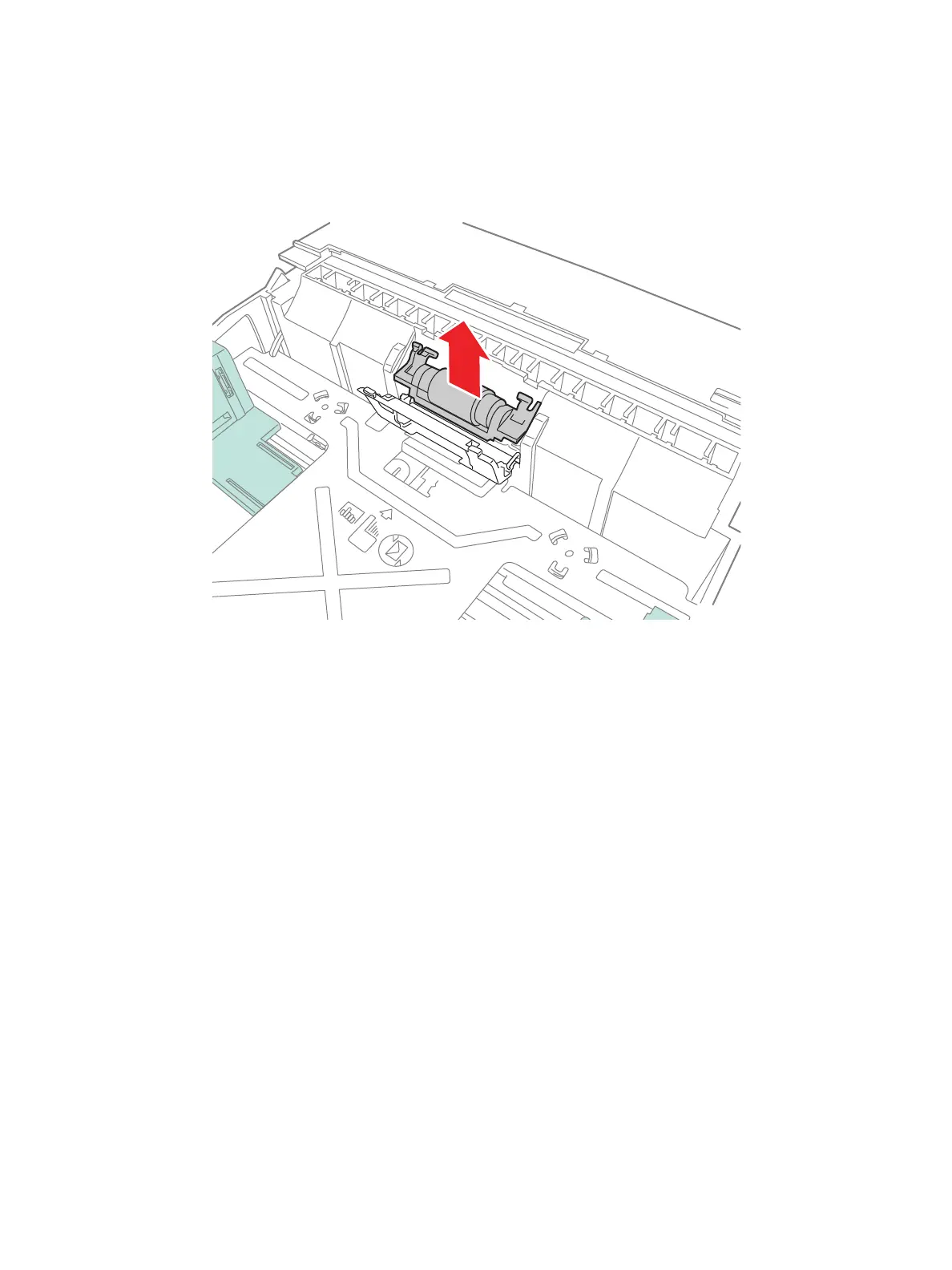

3. Release the Retard Roller.
Note: There are two springs under the retard roller. Make sure they remain seated on the bosses
underneath the roller assy.
s3320-066
PUSH
