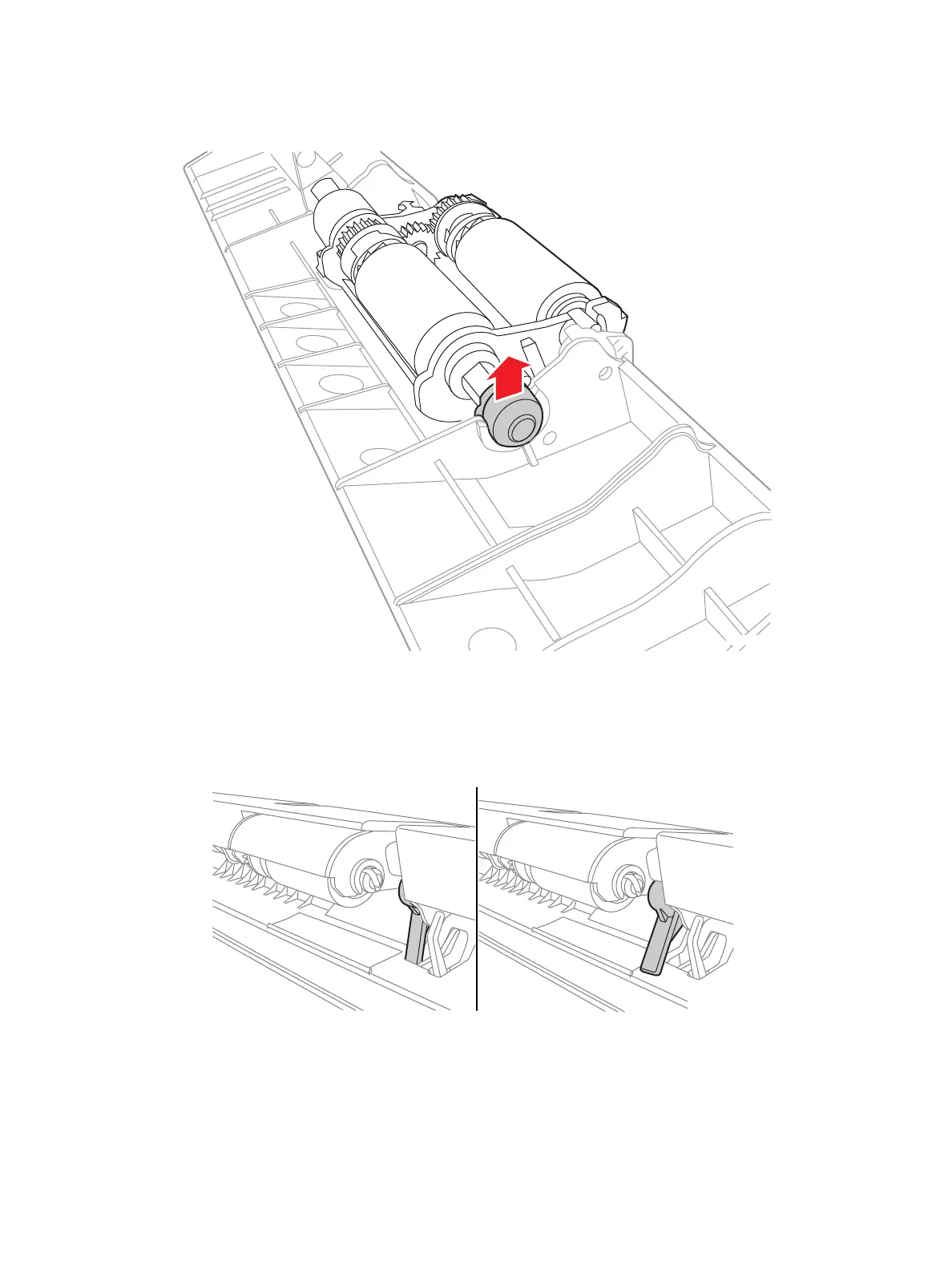

7. Push up on the PMO brush to remove it.
8. Lift out the Bypass Tray Pick Up Assembly.
Replacement Note: Ensure the Bypass Tray stopper falls properly into position when reassembling.
s3320-156
Correct Incorrect
s3320-071
