Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-40

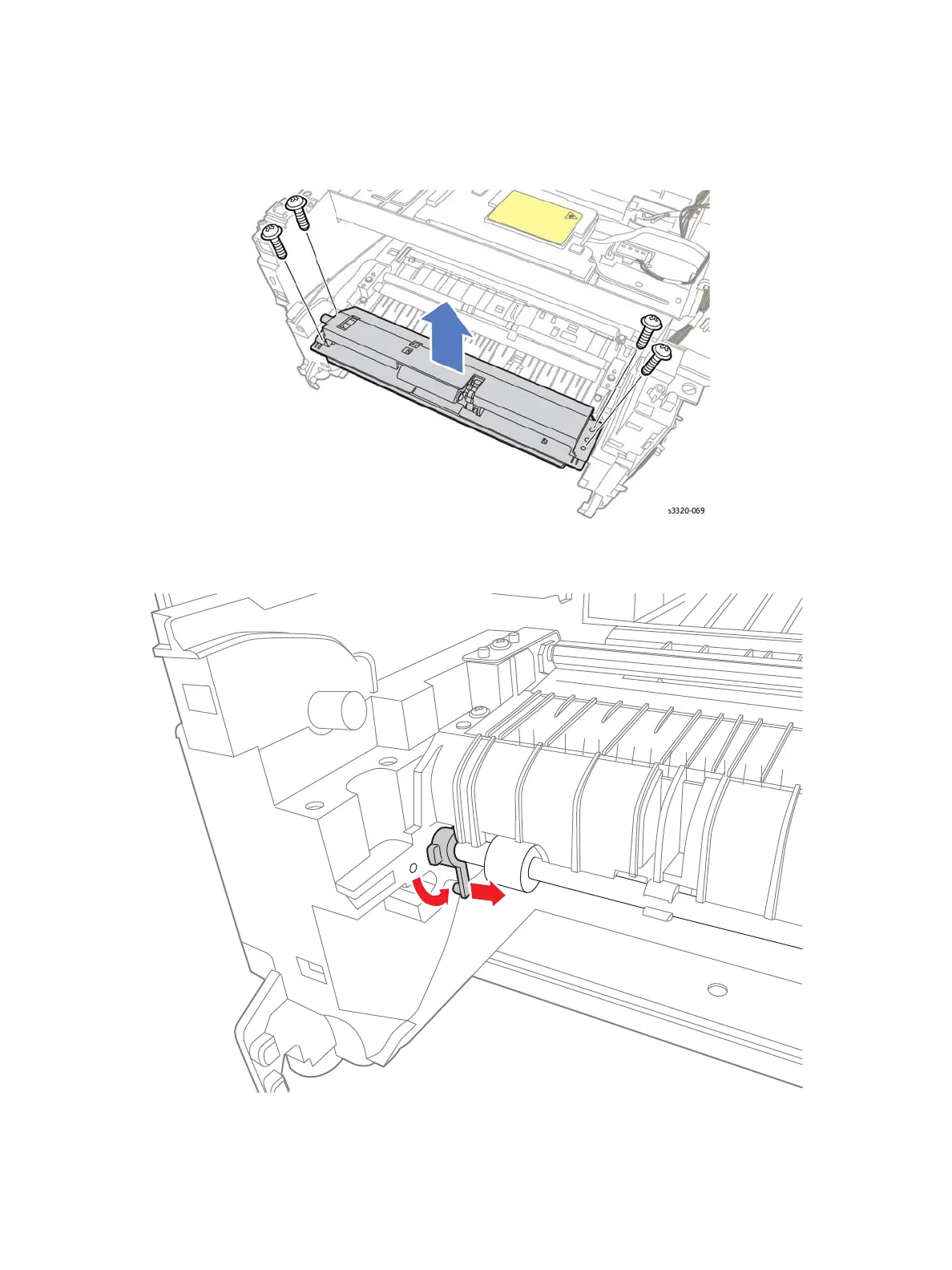

11. Remove 4 Bypass Tray screws (silver, flanged, tap, 10 mm) and let the Bypass Tray hang down.
12. Disconnect the boss on the feed roller bushing, rotate the bushing until it comes through the
frame, and disconnect the Feed Roller from the feed bushing PMOs to remove it.
To Next Page
