Xerox WorkCentre 3345

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-64
11. Remove the duplex swing bracket.
12. Remove the RDCN 23/23 Gear.
13. Remove the lock washer and the DR 19 Swing Gear.

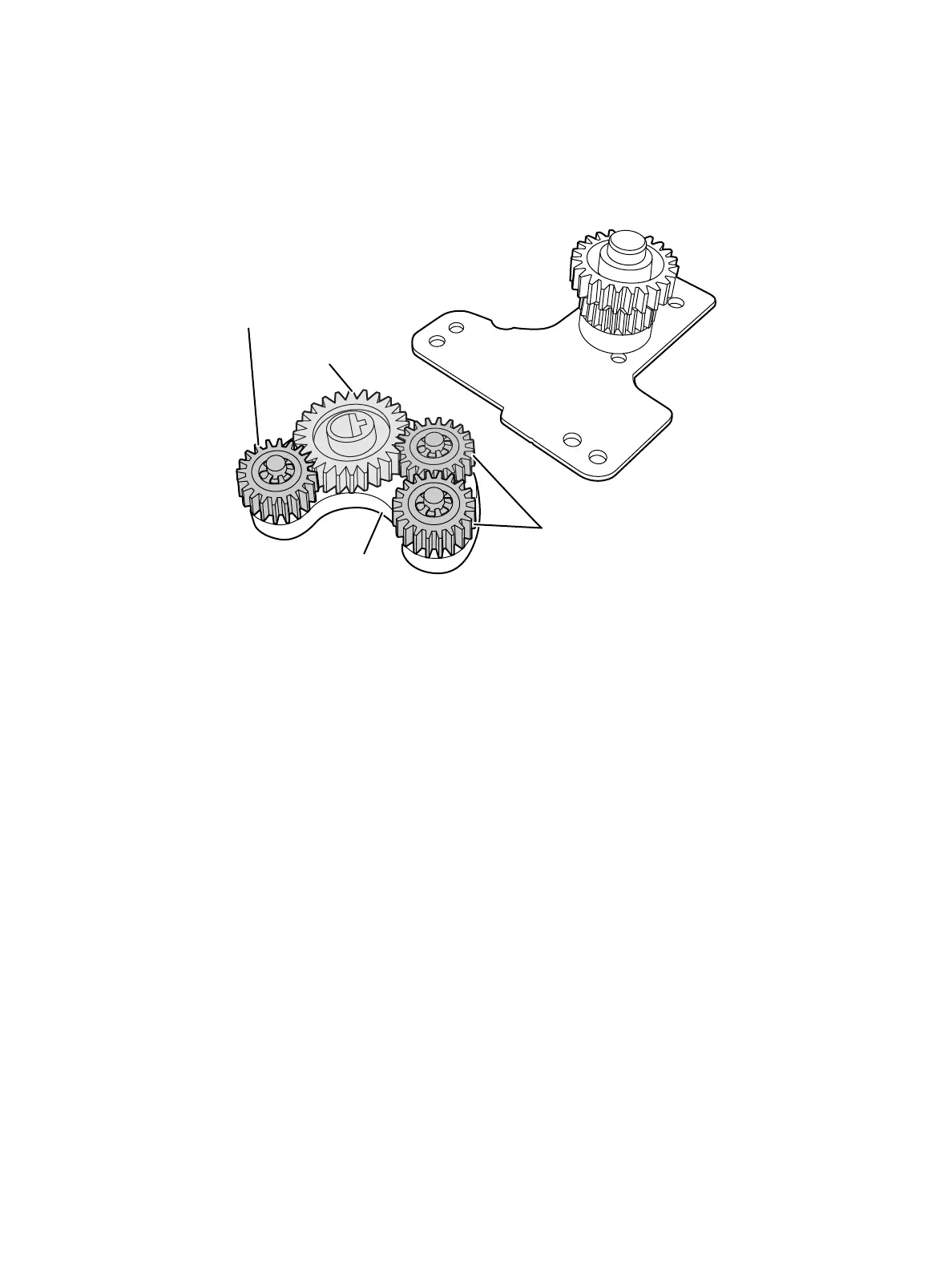

s3320-162
Duplex Swing Bracket
DR 19 Swing Gear
DR 19 Swing Gear
RDCN 23/23 Gear
